Creepage and Clearance in High-Voltage Connectors: Design Basics for Engineers
In high-voltage connectors design, electrical safety depends on much more than conductor size and insulation thickness.
Two of the most fundamental design parameters are creepage distance and clearance distance.
These dimensions determine how effectively a connector can withstand operating voltage, transients, humidity, contamination, and aging without flashover or tracking.
Whether you are designing connectors for electric vehicles (EVs), battery energy storage systems (ESS), charging equipment, or industrial power electronics, understanding creepage and clearance is essential.
This article explains the basic concepts, design rules, and validation considerations engineers should know.

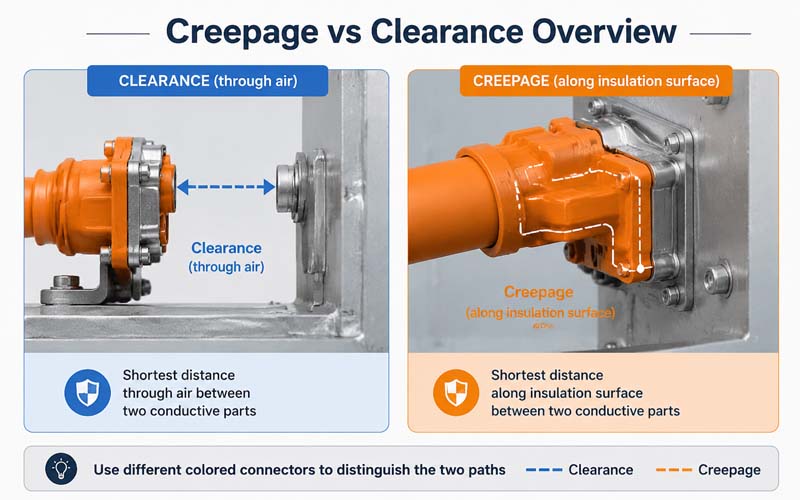

What Is Clearance?
Clearance is the shortest distance through air between two conductive parts at different electrical potentials.
Examples include:
- adjacent terminals
- terminal to shield
- terminal to connector shell
- live parts to chassis ground
If clearance is insufficient, arcing may occur during voltage transients or at high altitude.
What Is Creepage?
Creepage is the shortest path along the surface of an insulating material between two conductive parts.
This path follows the connector housing rather than passing directly through air.
Insufficient creepage can lead to:
- surface tracking
- carbonization
- insulation degradation
- eventual electrical failure
Why Both Distances Matter
Clearance addresses air breakdown risk.
Creepage addresses surface leakage and contamination risk.
Both must meet applicable standards and application-specific requirements.
Factors Affecting Required Distances
Required creepage and clearance depend on several variables.
Operating Voltage
Higher voltage requires larger separation distances.
Transient Overvoltage
Switching events and fault conditions may create voltages significantly above nominal levels.
Pollution Degree
Defines the expected environmental contamination level.
Typical classifications:
- Pollution Degree 1: controlled indoor environment
- Pollution Degree 2: light non-conductive contamination
- Pollution Degree 3: conductive contamination or condensation
Material Group (CTI)
Comparative Tracking Index (CTI) measures resistance to surface tracking.
Higher CTI materials can permit shorter creepage distances.
Altitude
Air insulation strength decreases as altitude increases, often requiring increased clearance.
Safety Standard Requirements
Applicable standards may define minimum distances and correction factors.
How Connector Designers Increase Creepage Distance
Design techniques include:
- insulating ribs
- barriers
- recessed terminals
- tortuous surface paths
- optimized terminal orientation
These features increase surface distance without significantly enlarging connector size.
Clearance Optimization Techniques
Methods to improve clearance include:
- wider terminal spacing
- insulation walls
- shield isolation
- careful tolerance control
3D CAD analysis is often used to verify minimum distances.
Common Design Mistakes
Using Nominal Dimensions Only
Manufacturing tolerances may reduce actual distances.
Ignoring Contamination
Real-world environments can be more severe than expected.
Overlooking Altitude
Reduced air density lowers dielectric strength.
Neglecting Aging
Materials may degrade over time.
Assuming Creepage and Clearance Are Interchangeable
They address different failure mechanisms.
Example Applications
Typical high-voltage connector applications include:
- EV battery pack connectors
- inverter interfaces
- onboard chargers
- DC fast charging connectors
- ESS battery interconnects
Each application may have unique safety requirements.
Validation Methods
Design assumptions should be verified by:
- dielectric withstand (HiPot) testing
- insulation resistance measurement
- humidity conditioning
- contamination testing
- thermal cycling
- altitude testing where applicable
Validation confirms that theoretical spacing performs under real conditions.
Relevant Standards
Common standards include:
- IEC 60664-1
- IEC 62109
- IEC 61800
- UL 840
- ISO 6469
- OEM high-voltage specifications
The applicable standard depends on the end product and market.
Practical Design Trade-Offs
Increasing creepage and clearance generally improves safety, but may also:
- enlarge connector size
- increase material cost
- affect mating force
- complicate packaging
The goal is to meet requirements efficiently while preserving manufacturability.
How FPIC Supports High-Voltage Connector Development
FPIC designs and manufactures high-voltage connectors and cable assemblies for EV, ESS, and industrial systems.
Our engineering support includes:
- creepage and clearance review
- material selection guidance
- HVIL integration
- sealing and shielding design
- HiPot and insulation testing
We help customers balance electrical safety, packaging, and cost.
Final Thoughts
Creepage and clearance are foundational elements of high-voltage connector design.
A robust design must consider:
- voltage level
- environmental conditions
- insulation material properties
- tolerances
- applicable standards
Understanding these principles early helps prevent costly redesigns and improves product safety.
FAQ
What is the difference between creepage and clearance?
Clearance is distance through air; creepage is distance along an insulating surface.
Why is CTI important?
Higher CTI materials resist tracking better and may allow shorter creepage distances.
Does altitude affect connector design?
Yes. Higher altitude reduces dielectric strength of air, increasing required clearance.
Can barriers increase creepage distance?
Yes. Ribs and barriers create longer surface paths.
How are these distances verified?
Through CAD analysis and electrical validation testing such as HiPot.
Designing a High-Voltage Connector?
FPIC provides engineering support and manufacturing for custom high-voltage connectors and cable assemblies with optimized insulation design and validated performance.
Contact us to discuss your application requirements.
