EV High Voltage Connector Testing

High voltage connector play a critical role in electric vehicle electrical systems. They connect essential components such as battery packs, inverters, electric motors, power distribution units, and other high-voltage equipment. Their performance directly affects electrical safety, power transmission, and vehicle reliability.

As electric vehicles move toward higher-voltage architectures, including 400V and 800V platforms, connector testing has become increasingly important. A connector must do more than conduct current. It must maintain reliable electrical insulation, stable contact resistance, mechanical integrity, and environmental protection throughout its intended service life.

For automotive OEMs, Tier 1 suppliers, and connector manufacturers, a comprehensive validation program is essential before a high-voltage connector is approved for production.

However, there is no single universal test checklist that applies to every EV connector. Testing requirements depend on the connector’s voltage and current ratings, installation location, mating cycles, environmental exposure, vehicle architecture, applicable standards, and customer specifications.

This article explains the major testing requirements for EV high-voltage connectors, the purpose of each test, and how manufacturers can establish a reliable validation process.

EV High Voltage Connector Testing


1.Why High-Voltage Connector Testing Is Essential for EV Applications

Unlike conventional low-voltage connectors, EV high-voltage connectors operate under more demanding electrical and environmental conditions.

They may be exposed to high operating voltages, substantial current loads, temperature fluctuations, vibration, moisture, dust, and mechanical stress. Any deterioration in connector performance can affect the safety and reliability of the vehicle’s electrical system.

Key Risks That Connector Testing Must Address

Electrical insulation failure

Insufficient insulation performance can lead to electrical breakdown, leakage current, or unintended electrical paths between conductive components.

Excessive contact resistance

Unstable or excessive contact resistance can generate localized heat, potentially accelerating terminal degradation and increasing the risk of connector failure.

Thermal aging

Repeated exposure to elevated temperatures can affect housing materials, terminal spring properties, seals, and other connector components.

Mechanical damage

Vibration, shock, cable movement, and repeated mating cycles can cause terminal displacement, housing damage, or locking mechanism failure.

Environmental deterioration

Water, dust, humidity, chemicals, and corrosion can affect insulation performance, contact stability, and sealing reliability.

High-voltage safety risks

Poorly designed or inadequately validated safety features may affect the vehicle’s ability to manage high-voltage disconnection and maintenance operations.

A structured testing program helps identify these risks before they develop into field failures.


2.High-Voltage Electrical Safety Testing

Electrical safety testing is one of the most important parts of EV high-voltage connector validation.

The purpose is to verify that conductive components remain properly isolated and that the connector can withstand specified electrical stresses under defined test conditions.

2.1 Dielectric Withstand Voltage Test

The dielectric withstand test evaluates whether the insulation system can tolerate a specified test voltage without electrical breakdown or unacceptable discharge.

During testing, a defined voltage is applied between electrically isolated conductive parts, such as adjacent terminals or a terminal and an applicable conductive enclosure.

Key evaluation points include:

  • No dielectric breakdown during the specified test
  • No unacceptable flashover
  • No insulation damage that affects product performance
  • Compliance with the specified leakage-current or test-equipment criteria, where applicable

The test voltage, waveform, duration, connection configuration, and acceptance criteria must be established by the applicable product specification or validation plan.

A higher test voltage does not automatically mean a better test. Excessive or inappropriate test conditions may damage an insulation system that is otherwise suitable for its intended application.


2.2 Insulation Resistance Test

The insulation resistance test measures the electrical resistance between isolated conductive components.

It helps evaluate the condition of the insulation system and identify potential issues such as contamination, moisture-related deterioration, or insulation defects.

Typical test configurations may include:

  • Between adjacent high-voltage terminals
  • Between a high-voltage terminal and a conductive housing, where applicable
  • Between isolated circuits defined in the connector specification

The test voltage, measurement time, environmental conditioning, and minimum acceptable resistance must be specified for the particular connector.

Insulation resistance and dielectric withstand testing serve different purposes. Passing one test does not automatically demonstrate compliance with the other.


2.3 Electrical Isolation After Environmental Exposure

A connector may initially demonstrate good insulation performance but experience deterioration after humidity exposure, thermal cycling, or other environmental stresses.

For this reason, insulation resistance and dielectric withstand evaluations may be included at different stages of a validation sequence.

Testing after environmental conditioning helps determine whether the insulation system maintains its required performance over time.


3.Contact Resistance and Voltage Drop Testing

Contact resistance is a critical performance parameter for high-voltage connectors.

The electrical contact interface must maintain stable conductivity under the specified current, temperature, and mechanical conditions.

Excessive contact resistance can increase localized heating and contribute to long-term degradation.

3.1 Contact Resistance Measurement

Contact resistance testing evaluates the resistance across the mated terminal interface.

A four-wire measurement method, also known as the Kelvin method, is commonly used when accurate low-resistance measurements are required. It helps reduce the influence of test lead and connection resistance.

Important factors include:

  • Contact surface condition
  • Terminal material and plating
  • Contact force
  • Terminal alignment
  • Mating condition
  • Measurement current and temperature
  • Test fixture and measurement repeatability

Measurements should be performed using a clearly defined configuration so that results can be compared across samples and test stages.


3.2 Voltage Drop Testing

Voltage drop testing measures the electrical potential difference across a defined connector or terminal path while current is flowing.

It provides practical information about electrical losses under the specified test conditions.

The voltage drop should be evaluated together with current, temperature, and measurement location. Results should not be compared without considering differences in test configuration.


3.3 Why Stable Contact Performance Matters

Contact resistance can change because of:

  • Surface oxidation or contamination
  • Inadequate contact force
  • Plating wear
  • Terminal deformation
  • Fretting corrosion
  • Poor terminal alignment
  • Manufacturing variation

To reduce these risks, connector manufacturers should control terminal stamping, forming, plating, assembly, and inspection processes.


4.Temperature Rise Testing for High-Current EV Connectors

High-current operation can generate heat at the contact interface, terminal body, and cable termination.

Temperature rise testing evaluates the thermal behavior of a connector under specified current and environmental conditions.

It is particularly important for connectors used in battery systems, power distribution, and electric drive applications.

What Does Temperature Rise Testing Evaluate?

The test typically examines:

  • Temperature at the contact interface or accessible measurement locations
  • Temperature near cable termination areas
  • Temperature distribution across the connector
  • Stability of temperature during the defined test period
  • Compliance with specified temperature limits

Important Testing Parameters

Parameter Why It Matters
Test current Determines the electrical load applied to the connector
Ambient temperature Influences the temperature difference and thermal behavior
Cable cross-section Affects conductor resistance and heat dissipation
Cable length Can influence the thermal behavior of the test assembly
Mounting orientation May affect heat transfer and natural convection
Test duration Determines whether thermal stabilization is reached
Measurement location Influences the relevance and repeatability of temperature results

Engineering Considerations

Temperature rise should not be evaluated only by measuring the external housing surface.

Critical areas may include the mating interface, terminal body, cable crimp, and nearby insulating structures.

Testing should use the specified cable type, conductor size, assembly configuration, and installation conditions whenever these factors influence thermal performance.

A connector that performs well under a short test may still require additional evaluation under prolonged operating conditions.


5.Mechanical Performance and Durability Testing

EV high-voltage connectors must maintain secure electrical and mechanical connections throughout vehicle operation.

Mechanical testing helps verify that connector structures can withstand installation forces, cable loads, vibration, and repeated handling.

5.1 Mating and Unmating Force Test

This test measures the force required to connect and disconnect the connector.

The objective is to confirm that the connector can be assembled and serviced as intended without excessive operating force or insufficient retention.

Important evaluation points include:

  • Initial mating force
  • Unmating force
  • Force variation across repeated cycles
  • Locking mechanism performance
  • Changes after environmental conditioning

For connectors with mechanical assistance mechanisms, such as levers or cam structures, the test plan should also address the relevant operating and locking functions.


5.2 Terminal Retention Test

Terminal retention testing evaluates whether terminals remain securely positioned inside the connector housing.

Insufficient terminal retention can lead to terminal back-out, poor contact engagement, or electrical instability.

The test may evaluate resistance to terminal movement under a specified axial force or other defined loading condition.


5.3 Vibration Testing

Vibration testing evaluates the connector’s ability to maintain mechanical and electrical performance under vibration representative of its intended vehicle installation.

Potential failure modes include:

  • Terminal movement
  • Contact interruption
  • Fretting corrosion
  • Housing damage
  • Locking mechanism loosening
  • Changes in contact resistance

Depending on the validation plan, electrical continuity or contact resistance may be monitored during or after vibration exposure.

The vibration profile should reflect the connector’s installation location, mounting arrangement, cable support, and applicable OEM requirements.


5.4 Mechanical Shock Testing

Mechanical shock testing evaluates the connector’s ability to withstand sudden mechanical loads.

It can help identify weaknesses in housing structures, terminal retention features, locking systems, and cable interfaces.

Acceptance criteria should include both visual inspection and relevant electrical or mechanical measurements after testing.


5.5 Cable Pull and Strain Relief Evaluation

Cable pull testing assesses the mechanical integrity of the cable-to-terminal connection and related strain relief features.

The test can help identify problems such as:

  • Cable separation
  • Crimp failure
  • Terminal deformation
  • Cable insulation damage
  • Excessive movement at the cable entry point

The applied load and test direction should reflect the product design and customer requirements.


6.Environmental Testing: Temperature, Humidity, and Water Ingress

High-voltage connectors may be installed in different areas of an EV, including battery packs, motor compartments, underbody locations, and power distribution systems.

Each installation location creates different environmental demands.

Environmental validation helps determine whether the connector can maintain performance under its intended operating conditions.

6.1 High- and Low-Temperature Testing

Temperature exposure testing evaluates how connector materials and components respond to specified temperature conditions.

Potential issues include:

  • Housing deformation
  • Material embrittlement
  • Loss of terminal contact force
  • Seal hardening or deterioration
  • Changes in dimensional stability
  • Reduced insulation performance

Test temperatures and exposure durations should be based on the connector’s operating range, storage requirements, installation location, and OEM specifications.


6.2 Thermal Cycling Testing

Thermal cycling exposes connector samples to repeated temperature changes.

It helps evaluate the effects of expansion and contraction on different materials and interfaces.

Potential failure modes include:

  • Housing cracks
  • Seal deterioration
  • Terminal movement
  • Loss of contact stability
  • Changes in contact resistance
  • Insulation performance degradation

Where required, electrical measurements and visual inspections should be performed before and after the thermal cycling sequence.


6.3 Humidity Testing

Humidity testing evaluates the connector’s resistance to moisture exposure.

Moisture may affect insulating surfaces, metal components, and sealing interfaces.

Testing can help identify:

  • Corrosion
  • Surface contamination
  • Insulation resistance deterioration
  • Seal performance issues
  • Material degradation

The test environment and acceptance criteria should be selected according to the intended vehicle application.


6.4 Water and Dust Ingress Protection Testing

Ingress protection testing evaluates whether the connector’s enclosure and sealing structure prevent the entry of water and solid foreign objects under defined conditions.

The required IP rating depends on the installation location and customer specification.

For example, IP67 and IP68 are commonly specified for certain automotive and industrial connector applications, but the exact test conditions and acceptance criteria must be defined for the selected rating and product configuration.

Testing should consider the complete connector assembly, including:

  • Mated connector interfaces
  • Cable entry seals
  • Rear seals
  • Unused cavities
  • Gaskets and locking structures

A connector’s IP rating should not be assumed to remain valid across all mating conditions, cable configurations, or installation arrangements without appropriate verification.


7.Corrosion Resistance and Chemical Compatibility Testing

EV connectors may be exposed to road salt, humidity, cleaning agents, automotive fluids, and other substances depending on their location.

Corrosion resistance testing helps evaluate whether metallic components and contact interfaces can maintain their intended performance under specified exposure conditions.

7.1 Salt Spray Testing

Salt spray testing evaluates the resistance of materials and surface treatments to a controlled salt-containing environment.

It can be useful for assessing corrosion behavior of terminals, housings with metallic components, fasteners, and other exposed conductive surfaces.

Important evaluation points include:

  • Visible corrosion
  • Plating damage
  • Surface discoloration
  • Corrosion around mating interfaces
  • Changes in contact resistance, where required

Salt spray duration should not be treated as a universal indicator of connector service life. The test method, sample condition, exposure duration, and acceptance criteria must be specified.


7.2 Chemical Resistance Testing

Chemical compatibility testing evaluates the effects of substances that may contact the connector during vehicle operation, maintenance, or cleaning.

Depending on the installation location, relevant substances may include:

  • Coolants
  • Lubricants
  • Cleaning agents
  • Road contaminants
  • Automotive fluids

Testing should consider the specific material grades, seals, coatings, and exposure conditions used in the connector assembly.


8.Shielding and EMC-Related Testing

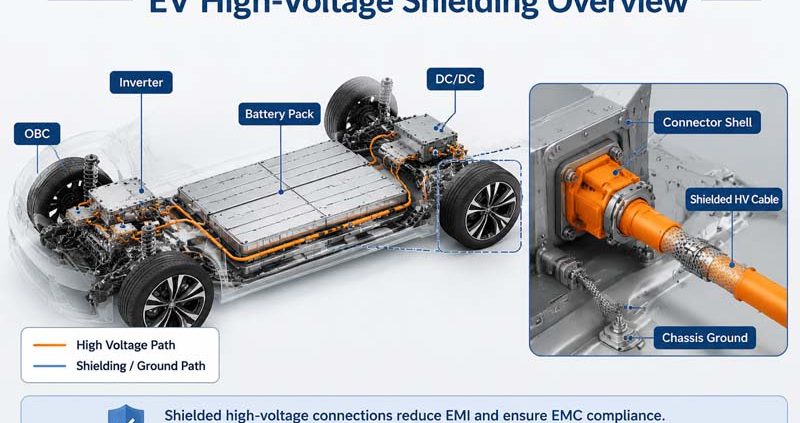

Some EV high-voltage connectors incorporate metallic shielding or conductive housings to support electromagnetic compatibility.

Shielding performance can be important in systems where high-voltage power electronics and signal circuits operate in close proximity.

Testing may evaluate:

  • Shield continuity
  • Shield termination integrity
  • Bonding resistance
  • Shielding effectiveness, where specified
  • EMC behavior of the connected system

The test method should reflect the connector’s shielding architecture and the vehicle-level EMC requirements.

A connector’s shielding performance cannot be evaluated solely by checking whether a metal shell is present. Shield continuity, contact interfaces, cable termination, and system integration all influence the result.


9.HVIL Function Testing

The High Voltage Interlock Loop (HVIL) is a safety-related feature used in many EV high-voltage systems.

It monitors the connection status of selected high-voltage components and provides information to the vehicle control system.

HVIL testing verifies that the interlock circuit behaves as intended during connector operation and under defined conditions.

Key Evaluation Points

Interlock continuity

Confirm that the circuit maintains the required electrical continuity in the intended connected condition.

Mating sequence

Verify that the interlock contacts engage in the correct sequence relative to the high-voltage contacts.

Unmating sequence

Confirm that the interlock signal changes as designed during connector separation.

Mechanical durability

Evaluate whether vibration, temperature exposure, and repeated mating cycles affect interlock contact performance.

System-level response

Where required, verify the connector’s behavior together with the vehicle’s monitoring circuit, contactors, and safety control strategy.

HVIL testing should not be limited to the connector component alone. Its intended behavior depends on the complete vehicle electrical architecture.


10.A Practical EV High-Voltage Connector Validation Matrix

A validation matrix helps engineers organize test requirements, sample quantities, test conditions, acceptance criteria, and reporting responsibilities.

The following table provides a general planning framework. It is not a universal mandatory test sequence or a substitute for the applicable OEM specification.

Test Category Typical Test Items Main Evaluation Objective
Electrical safety Dielectric withstand, insulation resistance Verify insulation performance
Electrical performance Contact resistance, voltage drop Confirm stable electrical connection
Thermal performance Temperature rise, thermal aging Evaluate heat generation and material stability
Mechanical durability Mating cycles, terminal retention, vibration, shock Verify mechanical integrity
Environmental durability Thermal cycling, humidity, ingress protection Evaluate environmental resistance
Corrosion resistance Salt spray, chemical exposure Assess surface and material durability
Shielding performance Shield continuity, bonding, EMC-related tests Verify shielding integrity
Safety functions HVIL continuity and switching sequence Verify interlock behavior
Post-test inspection Visual inspection and electrical remeasurement Identify degradation after testing

What Should a Validation Plan Include?

A complete validation plan should define:

  • Connector model and product configuration
  • Rated voltage and current
  • Cable type and conductor cross-section
  • Test samples and sample identification
  • Test method and applicable standard
  • Test conditions and severity levels
  • Required measurements
  • Acceptance criteria
  • Pre-test and post-test inspection requirements
  • Test reports and approval responsibilities

The validation matrix should be reviewed with the customer before testing begins. This helps avoid incomplete test coverage, inconsistent acceptance criteria, and unnecessary repeat testing.


11.Standards and Specifications for EV High-Voltage Connector Testing

Different standards cover different aspects of connector performance, electrical safety, and vehicle environmental conditions.

Selecting the correct document is essential. A standard designed for low-voltage connectors should not automatically be applied to high-voltage connectors, and an equipment-level environmental standard should not be treated as a complete connector validation specification.


ISO 20076:2019

ISO 20076:2019 defines test methods and performance requirements for specified voltage Class B connectors used in road vehicle electric propulsion systems and conductively connected auxiliary electric systems.

Its scope includes single-pole and multi-pole connectors designed to be disconnected after vehicle installation for repair and maintenance.

An important limitation is that the standard does not apply to vehicle charging inlets or internal connections of electronic devices.


SAE/USCAR-37

SAE/USCAR-37 is a high-voltage connector performance supplement intended to be used together with SAE/USCAR-2.

Its published scope covers high-voltage connector systems rated from 60 V to 600 V in road vehicle applications.

For an 800V-class connector, engineers should not assume that USCAR-37 alone establishes complete compliance. Its scope must be checked against the actual application, and any additional OEM requirements or validation methods must be agreed upon.


IEC 60512 Series

The IEC 60512 series provides test and measurement methods for electrical connectors and their components.

IEC 60512-1:2018 establishes a generic framework for connector testing, including test preparation, measurement practices, requirements, and documentation.

The relevant individual test methods should be selected according to the connector product specification and the performance characteristics being evaluated.


ISO 16750 Series

The ISO 16750 series addresses environmental conditions and testing for electrical and electronic equipment in road vehicles.

Its parts cover topics such as electrical loads, mechanical loads, climatic loads, and chemical loads.

These documents can help engineers understand vehicle environmental stresses and develop appropriate component test requirements. However, the series should not be treated as a complete standalone connector test specification. Connector-level requirements and OEM validation criteria still need to be defined.


Important Standard Selection Considerations

Before referencing a standard in a test plan, confirm:

  • The latest applicable revision
  • Voltage and product scope
  • Whether the standard covers the specific connector type
  • Whether the connector is vehicle-mounted or part of a charging interface
  • Applicable test methods and acceptance criteria
  • Additional OEM or customer-specific requirements

Standards provide a technical framework, but the final validation requirements must match the intended product and vehicle application.


12.From Design Verification to Mass Production: Maintaining Test Consistency

Passing initial validation is an important milestone, but it does not guarantee that every production unit will perform identically.

Manufacturing consistency is essential to maintaining the validated performance of high-voltage connectors.

Key Manufacturing Controls

Terminal stamping and forming

Critical terminal dimensions, contact geometry, spring characteristics, and burr conditions should be controlled.

Contact plating

Plating thickness, surface condition, adhesion, and process consistency should be verified according to the product specification.

Plastic injection molding

Material drying, molding parameters, dimensional stability, and visual quality should be monitored to maintain housing consistency.

Terminal assembly

Insertion position, retention performance, and assembly completeness should be inspected using appropriate methods.

Electrical inspection

Production inspection should include the electrical characteristics defined by the control plan and customer requirements.

Traceability and documentation

Material batches, process parameters, inspection results, test records, and engineering revisions should be traceable.


Why Production Validation Matters

A prototype may pass all required tests, but changes in material batches, tooling conditions, terminal dimensions, or assembly processes can affect final product performance.

For this reason, automotive connector development should connect design verification, process validation, production readiness, and ongoing quality control.

A structured approach helps ensure that the performance demonstrated during product validation can be maintained throughout mass production.


13.How to Build an Effective EV Connector Testing Strategy

An effective testing strategy should begin during the early engineering stage rather than after the connector design has been finalized.

A practical process can be divided into five stages.

Stage 1: Define application requirements

Identify the voltage and current ratings, cable configuration, installation location, operating temperature range, mating requirements, and environmental exposure.

Stage 2: Conduct design risk assessment

Review potential failure modes related to insulation, contact resistance, temperature rise, terminal retention, sealing, and safety functions.

Stage 3: Develop the validation matrix

Select relevant tests, standards, test conditions, sample quantities, and acceptance criteria according to the project requirements.

Stage 4: Execute testing and analyze results

Perform tests using calibrated equipment and controlled procedures. Record results, investigate failures, and document corrective actions.

Stage 5: Confirm production readiness

Verify that manufacturing processes, inspection methods, and traceability systems can consistently maintain the validated product characteristics.

This process helps reduce design risks, improve communication between engineering and quality teams, and support a smoother transition from prototype to mass production.


14.Conclusion: Testing Is Essential to EV High-Voltage Connector Reliability

High-voltage connector testing is a fundamental part of electric vehicle development.

A reliable connector must demonstrate more than electrical continuity. It must maintain insulation performance, stable contact resistance, acceptable temperature rise, mechanical durability, environmental protection, and the required safety functions throughout its intended service life.

The most effective validation strategy combines electrical, thermal, mechanical, environmental, and system-related evaluations. It also considers the connector’s actual installation conditions and the requirements of the vehicle manufacturer.

For automotive OEMs and Tier 1 suppliers, early cooperation with connector manufacturers can help identify potential failure modes, select suitable materials, establish a practical test matrix, and improve production readiness.

A well-defined testing program helps transform a promising connector design into a reliable component for demanding EV applications.


FAQ

What tests are required for EV high-voltage connectors?

Common validation items include dielectric withstand, insulation resistance, contact resistance, voltage drop, temperature rise, terminal retention, vibration, thermal cycling, humidity, ingress protection, corrosion resistance, and HVIL function testing. The final test list depends on the connector application and customer specifications.

Why is dielectric withstand testing important?

Dielectric withstand testing evaluates whether the connector insulation can tolerate a specified electrical stress without unacceptable breakdown or flashover. It helps verify electrical separation between conductive components.

What is the difference between insulation resistance and dielectric withstand testing?

Insulation resistance testing measures the resistance between electrically isolated components. Dielectric withstand testing applies a specified voltage stress to evaluate insulation strength. They assess different characteristics and should not be treated as interchangeable.

Why is temperature rise testing necessary for EV connectors?

High-current operation generates heat in terminals, contact interfaces, and cable terminations. Temperature rise testing evaluates whether the connector can operate within specified thermal limits under defined current and environmental conditions.

How do engineers test EV connector contact resistance?

Contact resistance is commonly measured using a low-resistance measurement method. A four-wire Kelvin measurement can help minimize the influence of test lead resistance. The test configuration, current, temperature, and measurement locations should be clearly defined.

Is SAE/USCAR-2 sufficient for high-voltage EV connector validation?

No. SAE/USCAR-2-9 covers automotive connector systems rated up to 60 V DC or coaxial applications within its stated scope. High-voltage connector projects require suitable high-voltage specifications and application-specific validation requirements. SAE/USCAR-37 is a separate high-voltage supplement with a stated scope of 60 V to 600 V.

Does ISO 20076 apply to EV charging connectors?

No. ISO 20076:2019 covers specified voltage Class B connectors used in road vehicle electric propulsion and auxiliary electrical systems. Its scope explicitly excludes vehicle charging inlets.

How often should high-voltage connectors be tested during mass production?

The frequency and scope of production testing should be defined by the product control plan, customer requirements, process risk assessment, and applicable quality procedures. Design validation tests are not necessarily repeated on every production unit. Routine inspection and electrical testing should focus on the characteristics identified as critical to product quality and safety.


Work with FPIC on Automotive Connector Development

Reliable automotive connectors require careful engineering, precise manufacturing, and a structured approach to product validation.

FPIC supports automotive connector manufacturing and customized development, with a focus on precision production, process consistency, and quality control.

For OEM and Tier 1 projects, early technical communication can help clarify connector specifications, material selection, test requirements, and production considerations.

Contact FPIC to discuss your automotive connector development and manufacturing requirements.


Resources

  1. ISO 20076:2019 – Road Vehicles: Test Methods and Performance Requirements for Voltage Class B Connectors

    Official ISO reference for specified high-voltage connectors used in road vehicle electric propulsion and auxiliary electrical systems.

  2. SAE/USCAR-37 – High Voltage Connector Performance Supplement to SAE/USCAR-2

    SAE specification covering high-voltage connector performance testing within its stated 60 V to 600 V scope.

  3. IEC 60512-1:2018 – Connectors for Electrical and Electronic Equipment: Tests and Measurements

    IEC generic specification providing a framework for connector test methods, measurement procedures, and documentation.

  4. ISO 16750-1:2023 – Road Vehicles: Environmental Conditions and Testing for Electrical and Electronic Equipment

    ISO reference describing vehicle environmental stresses and general testing requirements for electrical and electronic equipment.

  5. ISO 16750-3:2023 – Mechanical Loads

    Reference covering mechanical environmental loads for road vehicle electrical and electronic equipment.

  6. ISO 16750-4:2023 – Climatic Loads

    Reference covering climatic environmental loads for road vehicle electrical and electronic equipment.

800VEV High Voltage Connector Design

The development of 800V electric vehicle (EV) architectures is changing the requirements for automotive high-voltage interconnection systems. By increasing system voltage, EV manufacturers can reduce current for a given power level, potentially lowering resistive losses and enabling more efficient power distribution.

However, higher operating voltage also creates new challenges for connector design. Insulation coordination, electrical spacing, contact reliability, thermal management, mechanical protection, and high-voltage safety must all be considered together.

For connector manufacturers and automotive engineering teams, designing an 800V EV connector is not simply a matter of increasing the voltage rating of an existing 400V product. The entire connector system must be evaluated against its electrical, mechanical, thermal, and environmental operating conditions.

This article explores the key design challenges of 800V EV connectors and the engineering solutions that can help improve safety and long-term reliability.

800VEV High Voltage Connector Design


1.Why 800V EV Architectures Require Different Connector Design Considerations

An 800V EV platform uses a higher-voltage electrical architecture than conventional 400V systems. One important advantage is the ability to transmit the same electrical power at a lower current.

The relationship between electrical power, voltage, and current explains this advantage: electrical power equals voltage multiplied by current.

For example, under ideal DC conditions:

Electrical Power 400V System 800V System
100 kW 250 A 125 A
150 kW 375 A 187.5 A
200 kW 500 A 250 A

At the same power level, doubling the voltage halves the current. Since resistive losses increase with the square of current, reducing current can significantly reduce conductor losses when resistance remains unchanged.

However, this does not mean that every connector in an 800V vehicle can simply be made smaller. Higher voltage increases insulation requirements, while actual connector current still depends on the application, power demand, conductor size, cooling conditions, and allowable temperature rise.

Engineers must therefore balance electrical performance with packaging constraints, safety requirements, and manufacturing feasibility.

It is also important to distinguish between an 800V vehicle electrical architecture and an EV charging connector. Vehicle-mounted high-voltage connectors, battery connections, inverter connections, and external charging couplers have different interfaces, operating conditions, and applicable standards. Their requirements should be evaluated separately.


2.Challenge One: High-Voltage Insulation and Electrical Safety

Insulation is one of the most important design considerations for 800V EV connectors.

As working voltage increases, the risk associated with electrical breakdown, surface tracking, and insulation degradation becomes more significant. Connector insulation must maintain adequate electrical separation between conductive components under the specified operating and environmental conditions.

Key design risks

  • Insufficient insulation thickness
  • Electrical breakdown between adjacent terminals
  • Surface tracking caused by contamination or moisture
  • Insulation degradation under elevated temperatures
  • Reduced dielectric performance after environmental aging
  • Electrical stress around sharp edges and geometric discontinuities

Engineering solutions

1.Select suitable insulation materials

Connector housing materials should be selected according to dielectric performance, temperature resistance, mechanical strength, moisture behavior, and long-term aging characteristics.

Engineering plastics such as PBT, PA, and PPS may be considered depending on the application. However, no material should be selected based on its polymer name alone. The specific grade, reinforcement, flame-retardant system, processing conditions, and tested properties all matter.

2.Optimize insulation wall thickness

The housing should provide sufficient solid insulation between conductive components. Engineers should consider dimensional tolerances, molding variation, mechanical stress, and material aging when defining wall thickness.

3.Reduce electrical stress concentrations

Sharp terminal edges, burrs, and poorly controlled geometric transitions can create localized electrical stress. Appropriate terminal geometry and manufacturing controls help reduce these risks.

4.Validate insulation performance

Electrical testing should verify that the connector maintains the required insulation performance under the defined test conditions, including after relevant environmental exposure where required.

The design should be evaluated against the actual voltage profile, including operating voltage, transient conditions, and applicable safety requirements.


3.Challenge Two: Creepage Distance and Clearance Distance

Creepage and clearance are two fundamental parameters in high-voltage connector insulation design.

Although they are related, they describe different electrical separation paths.

Clearance distance is the shortest distance through air between two conductive parts.

Creepage distance is the shortest distance along the surface of an insulating material between two conductive parts.

In an 800V connector, insufficient clearance may increase the risk of electrical discharge through air, while insufficient creepage distance may increase the risk of surface tracking under certain contamination and humidity conditions.


What Determines the Required Distances?

Creepage and clearance requirements cannot be determined by nominal voltage alone.

Relevant design parameters include:

  • Working voltage and voltage waveform
  • Impulse or transient overvoltage conditions
  • Pollution degree
  • Insulating material group and comparative tracking index (CTI)
  • Altitude
  • Insulation type and applicable safety requirements
  • Manufacturing tolerances and connector geometry

IEC 60664-1 provides insulation coordination principles, including requirements and test methods for clearances, creepage distances, and solid insulation. Its 2025 consolidated edition incorporates Amendment 1 and covers equipment up to 1,500 V DC within its stated scope.


Engineering Solutions

Optimize internal terminal spacing

Terminal layouts should provide the required electrical separation without unnecessarily increasing connector dimensions.

Use insulating ribs and barriers

Molded ribs and internal barriers can extend the surface creepage path while maintaining a compact external housing.

Select materials with suitable tracking resistance

CTI is an important material property when evaluating surface tracking performance. Material selection should be based on the applicable insulation coordination requirements, not on a single CTI value in isolation.

Account for real manufacturing tolerances

The minimum insulation distance must remain compliant in the worst-case dimensional condition, including terminal position variation, housing deformation, and assembly tolerances.

A compact connector design should never compromise the required insulation distances.


4.Challenge Three: Contact Resistance and Thermal Management

Even when an 800V system reduces current for a given power level, connector contacts still generate heat during operation.

The main source of resistive heating at the contact interface is contact resistance. Heat generation increases with the square of current and is also affected by the resistance of the electrical path.

For example, if the contact resistance is 1 mΩ:

Current Contact Resistance Resistive Heat
100 A 1 mΩ 10 W
150 A 1 mΩ 22.5 W
200 A 1 mΩ 40 W
250 A 1 mΩ 62.5 W

These figures are simplified calculations for an individual resistance value under steady current. Actual connector temperature depends on heat distribution, conductor geometry, thermal conductivity, contact interface behavior, ambient temperature, and cooling conditions.


Why Does Contact Resistance Increase?

Potential causes include:

  • Inadequate contact force
  • Terminal deformation
  • Surface oxidation or contamination
  • Plating wear
  • Poor terminal alignment
  • Fretting caused by repeated micro-motion
  • Inconsistent crimping or termination quality

Engineering Solutions

1.Optimize contact geometry

Contact design should provide stable contact force and sufficient effective contact area under specified operating conditions.

2.Select suitable contact materials and plating

Copper alloys are commonly considered for conductive terminals because of their electrical and mechanical properties. Contact plating should be selected according to current requirements, mating cycles, corrosion exposure, and long-term contact stability.

3.Control terminal manufacturing processes

Stamping, forming, plating, and assembly processes must be controlled to maintain consistent terminal dimensions and contact characteristics.

4.Conduct temperature rise testing

Temperature rise testing helps evaluate thermal behavior under defined current, ambient temperature, and installation conditions. Engineers should monitor critical contact regions and cable termination areas rather than relying only on the connector’s external surface temperature.

For high-current EV charging connectors, thermal management can involve more advanced approaches. Recent research has investigated heat-pipe-based thermal management for high-power charging connectors, illustrating how thermal design is becoming an increasingly important part of high-power interconnection systems.


5.Challenge Four: Partial Discharge and Insulation Degradation

Partial discharge is a localized electrical discharge that can occur within or around insulation under certain electrical stress conditions without immediately bridging the entire insulation gap.

It is particularly relevant when designing high-voltage insulation systems with small gaps, voids, material interfaces, or localized electric field concentrations.

Potential Causes

  • Air voids inside molded insulation
  • Poor material bonding
  • Sharp conductive edges
  • Insufficient insulation design margins
  • Material defects or contamination
  • Inadequate control of molding and assembly processes

Repeated electrical stress may contribute to insulation degradation over time, depending on the material system and operating conditions.


Engineering Solutions

Improve insulation material and molding quality

Material drying, molding parameters, venting, and process consistency should be controlled to reduce defects that could affect insulation integrity.

Optimize electric field distribution

Terminal geometry should avoid unnecessary sharp edges and localized stress concentrations. Electrical field simulation can help identify high-field regions before tooling is finalized.

Evaluate insulation under relevant electrical conditions

Where required by the product specification or applicable validation plan, engineers should consider partial-discharge testing or other suitable insulation diagnostic methods.

Partial-discharge testing should not be assumed to be a universal requirement for every automotive connector. Its applicability and acceptance criteria need to be defined based on the insulation system and project requirements.


6.Challenge Five: Material Selection Under High-Voltage and High-Temperature Conditions

An 800V EV connector must maintain its electrical and mechanical properties throughout its expected operating life.

Material selection affects insulation performance, thermal stability, mechanical strength, chemical resistance, and dimensional consistency.

Housing Material Considerations

Material Potential Advantages Design Considerations
PBT Dimensional stability and electrical insulation properties Grade-specific temperature and chemical resistance
PA Mechanical strength and established molding applications Moisture absorption and dimensional variation
PPS High-temperature performance and dimensional stability Grade selection, brittleness, and processing control

These materials are examples rather than a universal ranking. The correct choice depends on the application, required temperature range, mechanical loading, environmental exposure, and validation results.


Terminal Material Considerations

Terminal materials must balance:

  • Electrical conductivity
  • Mechanical strength
  • Spring characteristics
  • Stress relaxation resistance
  • Corrosion resistance
  • Formability and manufacturability

Copper alloys are commonly used in electrical terminal systems. The specific alloy and temper should be selected according to contact force, current capacity, geometry, and manufacturing requirements.


Plating Considerations

Tin and silver plating may be considered for different automotive electrical applications, while gold plating is often used where stable low-level contact performance is important.

The selection should account for:

  • Contact resistance requirements
  • Operating current
  • Temperature exposure
  • Corrosion environment
  • Mating and unmating cycles
  • Fretting and wear behavior
  • Plating thickness and underplating

The goal is not simply to choose a material with the highest specification. It is to establish a material system that performs reliably under actual operating conditions.


7.Challenge Six: High-Voltage Interlock and Connector Safety

High-voltage safety is another essential part of EV connector design.

Many automotive high-voltage systems use a High Voltage Interlock Loop (HVIL) to monitor the connection status of high-voltage components.

The HVIL circuit is generally designed to detect the opening or disconnection of a monitored high-voltage connection and trigger the vehicle’s safety response according to its electrical architecture.

Why Is HVIL Important?

During service, maintenance, or unintended connector separation, high-voltage circuits must be managed to reduce the risk of electric shock and electrical arcing.

An HVIL system can help ensure that the vehicle control system receives an appropriate signal before a high-voltage connection is physically separated.


Engineering Solutions

1.Design appropriate contact sequencing

The interlock contact arrangement should be coordinated with the mechanical mating and unmating sequence.

2.Maintain reliable interlock contact performance

The low-voltage interlock circuit must maintain reliable electrical continuity under vibration, temperature changes, and repeated connection cycles.

3.Coordinate connector and vehicle-level safety logic

The connector design alone does not define the entire safety response. HVIL behavior must be evaluated together with the vehicle’s contactors, control strategy, and electrical architecture.

4.Validate the mechanical and electrical sequence

Testing should confirm that the interlock signal changes as intended during connector operation and under relevant fault conditions.

ISO 20076:2019 covers test methods and performance requirements for certain voltage Class B connectors used in road vehicles. It also highlights the importance of evaluating connector-related safety features such as HVIL in the context of the connector and vehicle electrical architecture.


8.Challenge Seven: Mechanical Durability, Vibration, and Environmental Protection

An 800V connector must maintain electrical insulation and contact stability throughout the vehicle’s operating life.

Automotive connectors are exposed to vibration, mechanical shock, thermal cycling, humidity, water, dust, and chemical substances, depending on their installation location.

These conditions can affect both mechanical structures and electrical contact interfaces.

Common Mechanical and Environmental Risks

  • Terminal displacement or back-out
  • Housing cracks or deformation
  • Locking mechanism failure
  • Seal damage
  • Water or dust ingress
  • Contact wear and fretting corrosion
  • Loss of contact force after aging
  • Cable movement transferring stress to the connector interface

Engineering Solutions

Strengthen terminal retention

Terminal locking structures should prevent unintended movement while maintaining consistent assembly quality.

Optimize connector locking mechanisms

Primary locking and secondary locking features should be designed to resist unintended separation under specified mechanical conditions.

Improve sealing structures

Seals, gaskets, and interface geometries should be selected according to the required IP protection level and installation environment.

Control cable routing and strain relief

Cable weight, bend radius, routing, and support points should be considered to reduce mechanical loads transferred to the connector.

Validate environmental durability

Depending on the application, testing may include vibration, mechanical shock, thermal cycling, humidity, ingress protection, and corrosion exposure.

The test plan should reflect the connector’s actual installation location and OEM requirements rather than applying the same test conditions to every product.


9.Challenge Eight: Compact Packaging and Manufacturing Consistency

EV manufacturers continue to pursue smaller, lighter, and more integrated electrical systems.

However, compact connector packaging can conflict with the larger insulation distances and stronger mechanical structures required by high-voltage applications.

This creates a design challenge: how can engineers maintain safety and reliability without unnecessarily increasing connector size?


Engineering Solutions

Use optimized terminal arrangements

A carefully designed terminal layout can improve electrical separation and packaging efficiency.

Integrate insulation features into the housing

Internal ribs, barriers, and optimized cavity geometry can help meet insulation requirements without excessively increasing the overall connector footprint.

Apply simulation during early design

Electrical field analysis, thermal simulation, and mechanical analysis can help identify design risks before prototype tooling.

Control critical manufacturing dimensions

Even a well-designed connector can fail to achieve its intended performance if terminal position, housing dimensions, or assembly tolerances are inconsistent.

A practical design process should therefore connect engineering analysis with tooling design, process capability, and inspection planning.


10.Recommended Validation Tests for 800V EV Connectors

A robust validation plan should evaluate electrical, mechanical, thermal, and environmental performance.

The exact tests and acceptance criteria depend on the connector’s application, voltage class, OEM specifications, and applicable standards.

Test Category Typical Evaluation Design Objective
Dielectric withstand Electrical withstand under specified test conditions Verify insulation strength
Insulation resistance Resistance between isolated conductive parts Evaluate electrical isolation
Contact resistance Resistance across mating contacts Verify electrical contact stability
Temperature rise Temperature under defined current and ambient conditions Evaluate thermal performance
Terminal retention Resistance to terminal displacement Verify mechanical retention
Vibration Electrical and mechanical behavior during vibration Evaluate durability
Thermal cycling Performance after repeated temperature changes Assess material and interface stability
Humidity exposure Insulation and material behavior under moisture exposure Evaluate environmental durability
Ingress protection Resistance to water and dust ingress Verify sealing performance
HVIL function Interlock continuity and switching sequence Verify safety-related interface behavior

Relevant Standards and References

The following standards and technical references may be relevant, depending on the product and application:

  • ISO 20076:2019 – Test methods and performance requirements for specified voltage Class B road-vehicle connectors.
  • IEC 60664-1:2020+A1:2025 – Insulation coordination principles, requirements, and tests.
  • SAE USCAR-12 – Wiring component design guidelines, including high-voltage application considerations. Confirm the applicable revision and customer requirements before use.
  • OEM-specific specifications – Additional electrical, mechanical, environmental, and safety requirements.

These documents have different scopes. They should not be treated as interchangeable or assumed to apply to every EV connector type. In particular, ISO 20076 excludes vehicle charging inlets from its stated scope.


11.From Prototype to Mass Production: What Connector Manufacturers Must Control

Successful 800V connector development requires more than a technically acceptable prototype.

The design must also be repeatable in mass production.

Important manufacturing controls include:

Terminal stamping and forming

Critical dimensions, spring geometry, burr direction, and forming consistency should be controlled to maintain contact performance.

Contact plating

Plating thickness, surface quality, adhesion, and process consistency should be verified according to the product specification.

Plastic injection molding

Material drying, molding temperature, pressure, cooling, and dimensional stability can influence insulation performance and housing quality.

Terminal assembly

Insertion position, retention features, and assembly completeness should be checked using suitable inspection methods.

Electrical testing

Electrical inspection should cover the characteristics defined by the control plan and customer specification.

Traceability

Production batches, material information, inspection results, and engineering revisions should be managed systematically.

For OEM projects, the transition from prototype to mass production should include design review, process risk assessment, validation, production readiness review, and the required customer approval documentation.

A structured quality approach helps ensure that the connector performs consistently beyond the initial sample stage.


12.Final Thoughts: Designing Reliable Connectors for 800V EV Platforms

The transition to 800V EV architectures creates opportunities for more efficient vehicle power distribution, but it also raises the technical requirements for high-voltage interconnection systems.

Connector engineers must balance insulation coordination, creepage and clearance distances, contact resistance, thermal performance, material selection, mechanical durability, and electrical safety.

No single design feature can guarantee connector reliability. A successful 800V EV connector depends on the combined performance of its terminal system, insulating housing, sealing structure, locking mechanism, cable interface, and manufacturing process.

For automotive OEMs and Tier 1 suppliers, involving connector manufacturers early in the development process can help identify design risks, evaluate material options, and establish a more effective validation plan.

As EV platforms continue to evolve, high-voltage connector design will remain an important part of vehicle electrical system reliability.


FAQ

What is an 800V EV connector?

An 800V EV connector is a high-voltage electrical connector designed for use in electric vehicle systems operating within an 800V-class electrical architecture. It may be used in battery connections, power distribution, inverter interfaces, and other high-voltage applications, depending on its design and rating.

Can a 400V EV connector be used in an 800V system?

Not automatically. A connector designed for a 400V application should not be assumed suitable for an 800V system. Its rated voltage, insulation coordination, dielectric performance, creepage and clearance distances, and other relevant requirements must be verified against the intended application.

Why are creepage and clearance important in 800V connectors?

Creepage and clearance provide electrical separation between conductive parts. Adequate distances help reduce the risk of electrical breakdown and surface tracking. Their required values depend on working voltage, transient conditions, pollution degree, insulation material, altitude, and applicable standards.

Does an 800V EV system always require a larger connector?

Not necessarily. Higher voltage may require greater electrical separation, but optimized terminal arrangements, insulating ribs, suitable materials, and compact housing structures can help manage packaging constraints. The final dimensions depend on current capacity, insulation requirements, mechanical loads, and the application.

How does contact resistance affect 800V EV connector performance?

Contact resistance generates heat in proportion to current squared and resistance. Excessive or unstable contact resistance can cause localized heating, accelerate material degradation, and affect electrical reliability. Stable contact force, suitable plating, precision manufacturing, and temperature rise testing are important controls.

What is the role of HVIL in an 800V EV connector?

A High Voltage Interlock Loop monitors the connection status of high-voltage components and provides a signal to the vehicle’s safety control system. Its operation must be coordinated with the vehicle’s electrical architecture and safety response strategy.

What tests are important for 800V EV connectors?

Typical evaluations include dielectric withstand, insulation resistance, contact resistance, temperature rise, terminal retention, vibration, thermal cycling, humidity, and ingress protection testing. The final validation plan should follow the application requirements and relevant OEM specifications.


Develop High-Voltage Connector Solutions with FPIC

Developing connectors for high-voltage automotive applications requires careful attention to electrical performance, insulation design, mechanical reliability, and manufacturing consistency.

FPIC provides automotive connector manufacturing and customized development support, with a focus on precision production and quality control.

For OEM and Tier 1 projects, early technical discussions can help clarify connector specifications, material requirements, manufacturing considerations, and validation expectations.

Contact FPIC to discuss your automotive connector development requirements.


Resources

  1. IEC 60664-1:2020+A1:2025 – Insulation CoordinationOfficial IEC reference covering insulation coordination, creepage distances, clearances, solid insulation, and electrical testing.
  2. ISO 20076:2019 – Test Methods and Performance Requirements for Voltage Class B ConnectorsISO reference for specified high-voltage connectors used in road vehicle electrical systems.
  3. SAE USCAR-12 – Wiring Component Design GuidelinesSAE design guideline covering wiring component functional requirements, including high-voltage applications. Check the applicable revision.
  4. Thermal Management Optimization for High-Power EV Charging ConnectorsResearch paper examining a heat-pipe-based thermal management approach for high-power EV charging connectors.
  5. Eight EV Challenges of Converting High Voltage to SELVTechnical discussion of high-voltage EV design considerations, including creepage, clearance, and insulation constraints.
Anatomy of an EV High-Voltage HV Connector

Walk into any electric vehicle battery pack, inverter compartment, or charging system and one feature immediately stands out:

Orange high-voltage connectors.

While many people assume the orange color is simply a visual identifier, these connectors differ from standard power connectors in far more significant ways.

Orange high-voltage (HV) connectors are designed specifically for applications involving hazardous voltages and high-power electrical systems. Their design requirements extend beyond electrical conductivity and include safety, insulation coordination, EMC performance, environmental protection, and validation standards.

This article explains the key differences between orange HV connectors and conventional power connectors used in lower-voltage systems.

Orange HV Connector vs Standard Power Connector


Why Are High-Voltage Connectors Orange?

The orange color serves as an internationally recognized safety indicator.

In EVs and many industrial electrification systems, orange components identify circuits carrying hazardous voltages.

The objective is simple:

  • improve technician awareness
  • reduce accidental contact risks
  • support maintenance procedures
  • comply with industry safety practices

However, the color itself does not make the connector safe.

The engineering behind the connector is what matters.

Anatomy of an EV High-Voltage HV Connector


Voltage Levels Are Fundamentally Different

Traditional power connectors often operate at:

  • 12V
  • 24V
  • 48V

EV high-voltage connectors commonly operate at:

  • 400V systems
  • 800V systems
  • 1000V+ ESS systems

Higher voltage introduces additional risks such as:

  • electrical arcing
  • insulation breakdown
  • surface tracking
  • transient overvoltage stress

As voltage increases, connector design becomes significantly more complex.


Creepage and Clearance Requirements

One of the biggest differences is insulation coordination.

Orange HV connectors require carefully engineered:

  • creepage distances
  • clearance distances
  • insulation barriers

Standard low-voltage connectors often have minimal spacing requirements because the risk of electrical breakdown is much lower.

In high-voltage systems, insufficient spacing can result in:

  • flashover
  • carbon tracking
  • catastrophic failure

Touch Safety Design

High-voltage connectors must prevent accidental contact with energized conductors.

Common features include:

  • finger-safe terminals
  • recessed contacts
  • touch-proof interfaces
  • protective shrouds

Many low-voltage power connectors do not require this level of protection.


HVIL Integration

Most EV high-voltage connectors incorporate:

HVIL (High Voltage Interlock Loop)

HVIL continuously monitors connector engagement.

If a connector becomes disconnected or partially unmated:

  • the HVIL circuit opens
  • contactors disconnect high voltage
  • the system enters a safe state

Standard power connectors typically do not include this functionality.


Enhanced Locking Mechanisms

Connector separation under load can be dangerous in high-voltage systems.

For this reason, HV connectors often include:

  • CPA (Connector Position Assurance)
  • secondary locking devices
  • mechanical retention features
  • visual mating indicators

These systems reduce the risk of incomplete mating and accidental disconnection.


Shielding and EMC Requirements

EV power electronics generate substantial electromagnetic noise.

Orange HV connectors frequently incorporate:

  • metal shielding
  • conductive backshells
  • 360° shield termination
  • grounding structures

These features help maintain EMC compliance.

Many standard power connectors are not designed for high-frequency EMC control.


Thermal Performance Expectations

EV connectors often carry:

  • high continuous current
  • rapid charging current
  • inverter power loads

As a result, designers pay close attention to:

  • contact resistance
  • terminal design
  • thermal rise
  • current cycling performance

Thermal validation is generally more demanding than for conventional power connectors.


Environmental Protection Requirements

High-voltage connectors frequently operate in:

  • battery packs
  • underbody locations
  • motor compartments
  • charging systems

Common requirements include:

  • IP67 sealing
  • IP68 sealing
  • vibration resistance
  • chemical resistance
  • thermal cycling durability

Environmental exposure can directly affect electrical safety.


Validation Standards Are More Demanding

Orange HV connectors must typically satisfy extensive validation programs.

Common tests include:

  • dielectric withstand (HiPot)
  • insulation resistance
  • vibration testing
  • thermal shock
  • salt spray
  • humidity exposure
  • HVIL validation
  • EMC testing

These requirements exceed those of many standard power connector applications.


Serviceability Considerations

High-voltage systems require controlled service procedures.

Connectors often include:

  • service disconnect functions
  • maintenance lockouts
  • visual safety indicators
  • tool-assisted release mechanisms

Safety during maintenance is a major design priority.


Typical Applications for Orange HV Connectors

Common applications include:

EV Battery Packs

High-current battery interfaces.

Inverters

Motor drive power connections.

Onboard Chargers (OBC)

AC-to-DC charging systems.

DC/DC Converters

High-voltage to low-voltage power conversion.

Energy Storage Systems (ESS)

Battery energy storage power distribution.

Fast Charging Equipment

High-power charging infrastructure.


Common Misconceptions

Orange Color Alone Means Safe

False.

The color is only a visual identifier.

Safety comes from:

  • insulation design
  • HVIL
  • locking systems
  • validation testing

Any Power Connector Can Be Used in HV Applications

False.

High-voltage systems require specialized designs and validation.

Current Rating Is the Only Important Specification

False.

Voltage, insulation, EMC, and environmental performance are equally important.


How FPIC Supports High-Voltage Connectivity

FPIC develops custom high-voltage connectors and cable assemblies for:

  • EV platforms
  • ESS systems
  • industrial electrification
  • charging infrastructure

Our capabilities include:

  • HVIL integration
  • shielding design
  • creepage and clearance optimization
  • thermal validation
  • environmental testing support
  • custom cable assembly manufacturing

We help customers develop safe and reliable high-voltage interconnect solutions.


Final Thoughts

Orange high-voltage connectors represent far more than a color standard.

Compared with conventional power connectors, they incorporate:

  • enhanced insulation systems
  • touch-safe interfaces
  • HVIL functionality
  • shielding structures
  • advanced locking mechanisms
  • rigorous validation requirements

As EV and energy storage systems continue moving toward higher voltages and power densities, connector design plays an increasingly critical role in system safety and reliability.


FAQ

Why are EV high-voltage connectors orange?

Orange provides a visual warning that hazardous voltage may be present.

What is the biggest difference between HV and standard power connectors?

Electrical safety requirements, including insulation, HVIL, and touch protection.

Do all orange connectors contain HVIL?

Not all, but HVIL is widely used in automotive high-voltage systems.

Why do HV connectors require shielding?

To control EMC issues generated by high-power electronics.

Can standard power connectors be used in EV battery systems?

Generally no. Specialized high-voltage connectors are required.


Looking for High-Voltage Connector Solutions?

FPIC provides custom high-voltage connectors and cable assemblies with HVIL, shielding, sealing, and validation support for EV, ESS, and industrial applications.

Contact us to discuss your high-voltage connectivity requirements.


Resources

  1. ISO 6469 – Electrically Propelled Vehicle Safety Requirements
    International safety requirements for EV high-voltage systems.
  2. LV215 – High Voltage Connector Systems for Road Vehicles
    Automotive requirements for HV connector systems.
  3. USCAR-2 – Automotive Connector Performance Specification
    Environmental and electrical validation requirements.
  4. IEC 60664-1 – Insulation Coordination Standard
    Creepage and clearance design requirements.
  5. TE Connectivity – High Voltage EV Connectivity Solutions
    Technical guidance on EV high-voltage connector systems.
800V EV CONNECTOR Design Trade-Off Overview

The transition from 400V to 800V vehicle architectures is reshaping the design of high-voltage connector.

Automakers are adopting 800V systems to support:

  • faster charging
  • higher power density
  • improved drivetrain efficiency
  • reduced cable weight

However, increasing system voltage creates new engineering challenges.

Connector designers must balance two competing objectives:

  • minimizing size and weight
  • maintaining adequate electrical safety margins

This trade-off affects nearly every aspect of connector development, from insulation design to thermal performance and EMC behavior.

800V EV CONNECTOR Design Trade-Off Overview


Why 800V Systems Change Connector Design

At first glance, an 800V connector may appear similar to a 400V connector.

In reality, the higher operating voltage increases the importance of:

  • insulation coordination
  • creepage distance
  • clearance distance
  • dielectric performance
  • contamination resistance
  • transient voltage withstand capability

The design window becomes significantly smaller.


The Industry Push Toward Compact Packaging

Vehicle manufacturers constantly seek:

  • lighter vehicles
  • smaller power electronics
  • tighter battery packaging
  • reduced installation space

As a result, connectors are expected to deliver:

  • higher voltage
  • higher current
  • smaller size

These requirements often conflict with each other.


The Creepage and Clearance Challenge

One of the most significant design constraints is maintaining sufficient electrical spacing.

Higher voltages generally require:

  • larger clearance distances
  • longer creepage paths
  • improved insulation structures

However, increasing spacing also increases connector size.

Designers often use:

  • insulating ribs
  • internal barriers
  • recessed terminals
  • optimized conductor geometry

to maximize electrical separation within limited packaging volume.

Compact Design vs Electrical Safety Comparison


Safety Margin vs Minimum Compliance

Meeting a standard requirement is not always enough.

A connector may technically comply with a specified spacing requirement while having limited margin for:

  • manufacturing tolerances
  • contamination
  • aging
  • vibration
  • environmental exposure

Experienced engineers typically design beyond minimum values to improve robustness.


Thermal Performance Trade-Offs

Higher voltage systems often support higher power levels.

To reduce size, designers may attempt to:

  • reduce terminal dimensions
  • decrease connector footprint
  • increase current density

These changes can increase:

  • contact temperature
  • thermal stress
  • material aging

Thermal validation becomes increasingly important in compact 800V designs.


Shielding and EMC Constraints

Modern 800V systems contain:

  • traction inverters
  • onboard chargers
  • DC/DC converters
  • high-speed communication networks

Effective shielding often requires:

  • metal shells
  • conductive backshells
  • 360° shield termination

These features consume valuable packaging space.

Reducing connector size may compromise EMC performance if shielding design is not carefully optimized.


HVIL Integration Challenges

Many 800V connectors incorporate HVIL (High Voltage Interlock Loop) functionality.

Additional HVIL contacts require:

  • dedicated space
  • mechanical protection
  • routing paths
  • insulation separation

Compact packaging increases the complexity of integrating these safety functions.


Mechanical Durability Considerations

Smaller connectors are often more sensitive to:

  • tolerance variation
  • vibration
  • mating misalignment
  • terminal movement

Maintaining long-term durability while reducing size requires careful mechanical design.


Environmental Sealing Trade-Offs

800V connectors frequently require:

  • IP67 protection
  • IP68 protection
  • chemical resistance
  • pressure resistance

Adding robust sealing features increases:

  • connector volume
  • mating force
  • manufacturing complexity

Yet inadequate sealing can significantly reduce safety margins.


Material Selection Becomes More Important

Material choice directly influences:

  • dielectric strength
  • CTI performance
  • thermal stability
  • mechanical durability

Higher-performance materials may allow more compact designs but often increase cost.


Manufacturing Tolerance Considerations

A design that appears acceptable in CAD may become risky in production.

Engineers must account for:

  • molding variation
  • terminal positioning tolerance
  • assembly variation
  • wear over product life

Reduced safety margins leave less room for manufacturing variation.


Validation Requirements for 800V Connectors

Because design margins are tighter, validation becomes more critical.

Typical tests include:

  • HiPot testing
  • insulation resistance testing
  • thermal cycling
  • vibration testing
  • humidity exposure
  • salt spray
  • EMC validation
  • HVIL functional testing

Validation should simulate real operating conditions whenever possible.


Common Design Mistakes

Optimizing Only for Size

Electrical safety margins may become insufficient.

Ignoring Long-Term Aging

Material degradation can reduce insulation performance.

Underestimating EMC Requirements

Shielding limitations often appear late in development.

Relying Solely on Standard Minimums

Minimum compliance does not guarantee robustness.

Reducing Validation Scope

Aggressive packaging requires more testing, not less.


The Best Approach: Balanced Engineering

Successful 800V connector design is not about achieving the smallest possible package.

It is about balancing:

  • electrical safety
  • thermal performance
  • EMC performance
  • manufacturability
  • reliability
  • serviceability

The most reliable connectors typically incorporate appropriate engineering margin rather than pursuing extreme miniaturization.


How FPIC Supports 800V Connector Development

FPIC develops high-voltage connectors and cable assemblies for EV, ESS, and industrial electrification applications.

Our engineering support includes:

  • 800V connector architecture review
  • creepage and clearance optimization
  • HVIL integration
  • shielding design
  • thermal validation
  • prototype development
  • production manufacturing support

We help customers balance compact packaging with long-term reliability and safety.


Final Thoughts

The move to 800V architectures creates significant opportunities for vehicle performance and charging efficiency.

However, higher voltage leaves less room for design mistakes.

Engineers must carefully balance:

  • size
  • weight
  • insulation performance
  • thermal behavior
  • EMC requirements
  • durability

In high-voltage connector design, safety margin is not wasted space—it is often the foundation of long-term reliability.


FAQ

Why are 800V connectors more challenging than 400V connectors?

Higher voltage increases insulation and safety requirements while packaging space continues to shrink.

Can connector size always be reduced?

Not without affecting safety margin, thermal performance, or EMC behavior.

Why are creepage and clearance more critical in 800V systems?

Higher voltage increases the risk of arcing and surface tracking.

Does compact packaging affect EMC?

Yes. Reduced space can limit shielding effectiveness and grounding paths.

Should engineers design beyond minimum standard requirements?

In many applications, additional safety margin improves long-term reliability.


Developing an 800V EV or ESS Platform?

FPIC provides custom high-voltage connectors and cable assemblies designed for 800V architectures, combining compact packaging, robust insulation design, and validated reliability.

Contact us to discuss your high-voltage interconnect requirements.


Resources

  1. ISO 6469 – Electrically Propelled Vehicle Safety Requirements
    Safety requirements for high-voltage EV systems.
  2. IEC 60664-1 – Insulation Coordination for Low-Voltage Systems
    Fundamental guidance on creepage and clearance.
  3. LV214 / LV215 High-Voltage Automotive Connector Standards
    Automotive connector validation and design requirements.
  4. USCAR-2 Automotive Connector Performance Specification
    Connector reliability and environmental test requirements.
  5. TE Connectivity – High Voltage EV Connectivity Solutions
    Industry guidance on EV high-voltage interconnect design.
High-Current Connector Temperature Rise Overview

As electric vehicles (EVs), energy storage systems (ESS), and industrial electrification platforms continue increasing in power density, high-current connectors thermal performance has become a major engineering concern.

High-current connectors must safely carry large amounts of current for extended periods without excessive heating.

Even small increases in contact resistance can generate significant heat under high current conditions.

Temperature rise testing is therefore one of the most important validation methods for high-current connectors and cable assemblies.

This article explains why temperature rise testing matters, how test setups are designed, and the key failure risks engineers should monitor.

High-Current Connector Temperature Rise Overview.


Why Temperature Rise Testing Is Critical

A connector may pass continuity and dielectric tests while still suffering from poor thermal performance.

Excessive temperature rise can lead to:

  • insulation degradation
  • contact oxidation
  • reduced spring force
  • thermal runaway
  • voltage drop
  • accelerated aging
  • connector melting

Thermal issues are especially important in:

  • EV battery systems
  • inverters
  • OBC interfaces
  • DC fast charging
  • ESS battery cabinets

Basic Principle of Temperature Rise Testing

The test measures how much the connector temperature increases above ambient while carrying current.

The general process includes:

1.Apply specified current

2.Stabilize thermal conditions

3.Measure conductor and terminal temperatures

4.Compare temperature rise against acceptance criteria

The test evaluates the combined effect of:

  • contact resistance
  • conductor size
  • terminal design
  • plating quality
  • cooling conditions

What Causes Temperature Rise?

Heat generation mainly comes from electrical resistance.

The power loss relationship is approximately:

P = I²R

This means:

  • doubling current increases heat dramatically
  • small resistance increases can create large thermal effects

Critical resistance sources include:

  • contact interface resistance
  • crimp resistance
  • conductor resistance
  • degraded plating surfaces

Typical Test Setup

A temperature rise test setup generally includes:

  • programmable current source
  • calibrated thermocouples
  • data acquisition system
  • test fixture
  • controlled ambient environment

The connector is assembled using production-intent components and cable lengths.


Thermocouple Placement

Common measurement points include:

  • contact interface area
  • terminal crimp area
  • cable conductor near the connector
  • housing surface

Proper sensor attachment is critical for accurate results.


Steady-State Testing

Most tests continue until thermal stabilization occurs.

Steady state is typically defined as:

temperature change below a specified threshold over time

Depending on current level and connector mass, stabilization may require several hours.


Continuous Current vs Peak Current

Validation often includes both:

Continuous Current Testing

Evaluates long-term thermal capability.

Peak or Overload Testing

Assesses short-duration thermal stress.

Real applications may experience both conditions.


Important Environmental Factors

Temperature rise depends heavily on installation conditions.

Factors include:

  • ambient temperature
  • airflow
  • cable bundling
  • enclosure confinement
  • mounting orientation

Catalog ratings may not represent actual system conditions.


Common Failure Risks

High Contact Resistance

Poor contact interfaces create localized heating.

Inadequate Crimp Quality

Poor crimps increase resistance and heat generation.

Reduced Contact Force

Thermal cycling may weaken terminal spring force.

Poor Shield Grounding

In shielded connectors, grounding paths may also heat.

Insufficient Cooling

Compact packaging can trap heat.


Thermal Aging Effects

Long-term exposure to elevated temperature may cause:

  • oxidation
  • plastic deformation
  • plating degradation
  • insulation hardening
  • creep relaxation

Temperature rise testing is often combined with aging cycles.


Acceptance Criteria

Acceptance limits depend on:

  • connector material
  • insulation class
  • application standard
  • OEM requirements

Many standards specify maximum allowable temperature rise above ambient.


Relevant Standards

Common references include:

  • USCAR-2
  • LV214
  • IEC 60512
  • UL connector standards
  • OEM-specific validation requirements

Correlation with Other Tests

Temperature rise testing should be combined with:

  • contact resistance testing
  • thermal cycling
  • vibration testing
  • humidity exposure
  • mechanical durability testing

Many connector failures occur only after combined stress exposure.


Typical Applications

Temperature rise testing is essential for:

  • battery pack connectors
  • charging connectors
  • inverter interfaces
  • busbar connections
  • ESS power connectors
  • industrial high-current systems

How FPIC Supports Thermal Validation

FPIC provides high-current connector and cable assembly solutions with:

  • thermal performance evaluation
  • crimp resistance control
  • contact resistance verification
  • current cycling validation
  • customized test support
  • EV and ESS application engineering

We help customers optimize connector reliability under real operating conditions.


Final Thoughts

Temperature rise testing is one of the most important validation methods for high-current connectors.

A successful design depends on:

  • low and stable resistance
  • robust contact systems
  • controlled crimp quality
  • realistic installation conditions
  • comprehensive validation

As power density increases in EV and energy systems, thermal validation becomes increasingly critical to long-term reliability and safety.


FAQ

Why is temperature rise testing important?

It verifies whether a connector can safely carry current without overheating.

What mainly causes connector heating?

Electrical resistance at contacts, crimps, and conductors.

Does ambient temperature affect results?

Yes. Installation environment strongly influences thermal performance.

Can a connector pass electrical tests but fail thermally?

Yes. Low-level electrical tests may not reveal thermal weaknesses.

Why is steady-state testing necessary?

Because some thermal failures appear only after long stabilization periods.


Need Reliable High-Current Connector Solutions?

FPIC supports EV, ESS, and industrial projects with custom high-current connectors and cable assemblies validated for thermal performance and long-term reliability.

Contact us to discuss your application requirements.

Resources

  1. USCAR-2 – Automotive Connector Performance Specification
    Defines connector environmental and thermal validation requirements.
  2. IEC 60512 – Connector Test Methods
    International connector electrical and mechanical test procedures.
  3. LV214 Automotive Connector Validation Standard
    Automotive connector qualification requirements.
  4. TE Connectivity – High Current Connector Thermal Design
    Thermal considerations for high-power connectors.
  5. Molex – Power Connector Thermal Performance Guide
    Connector current carrying and temperature rise guidance.
High-Voltage Connector Supplier Qualification Checklist

In EV, energy storage, and industrial electrification projects, high-voltage connector are safety-critical components.

A connector failure can lead to:

  • vehicle shutdown
  • thermal damage
  • EMC issues
  • field recalls
  • safety risks
  • costly warranty claims

For OEM buyers, supplier selection is therefore not only a purchasing decision—it is a long-term quality and risk management decision.

Yet many sourcing evaluations still focus too heavily on price and catalog specifications.

This article explains the key technical, manufacturing, and quality factors OEM buyers should review before approving a high-voltage connector supplier.

High-Voltage Connector Supplier Qualification Checklist


Why Supplier Evaluation Matters

A high-voltage connector supplier becomes part of the OEM’s safety chain.

The supplier’s capabilities directly affect:

  • electrical reliability
  • production consistency
  • validation performance
  • traceability
  • launch timing
  • long-term field reliability

Even well-designed connectors can fail if manufacturing processes are unstable.


1.Review High-Voltage Application Experience

Not all connector manufacturers have genuine high-voltage expertise.

OEM buyers should confirm experience in:

  • EV battery systems
  • onboard chargers
  • inverters
  • ESS battery systems
  • industrial power electronics

High-voltage applications require different design and validation approaches compared with low-voltage connectors.


2.Verify Compliance with Automotive Quality Systems

A qualified supplier should operate under robust quality management systems such as:

  • IATF 16949
  • ISO 9001
  • ISO 14001

OEMs should verify:

  • certification status
  • audit performance
  • process discipline
  • corrective action systems

3.Evaluate Validation Capability

Suppliers should demonstrate the ability to perform or support:

  • temperature rise testing
  • contact resistance testing
  • vibration testing
  • thermal cycling
  • salt spray
  • sealing validation
  • HiPot testing
  • insulation resistance testing
  • HVIL functional validation
  • EMC-related validation

Validation capability is especially important for custom connector programs.


4.Assess Engineering Support

Strong engineering support often determines project success.

OEM buyers should evaluate whether the supplier can assist with:

  • connector selection
  • creepage and clearance review
  • shielding strategy
  • HVIL integration
  • cable routing
  • DFM (Design for Manufacturability)
  • tolerance analysis

Engineering responsiveness during development is critical.


5.Review Manufacturing Process Control

Manufacturing consistency is essential for high-voltage reliability.

Key areas to review include:

  • crimp process control
  • automated inspection
  • pull force testing
  • torque verification
  • traceability systems
  • SPC implementation
  • preventive maintenance

Process discipline often matters more than equipment appearance.


6.Inspect Traceability Systems

OEMs increasingly require full traceability.

Suppliers should be able to track:

  • raw materials
  • terminals
  • housings
  • plating lots
  • production dates
  • operators
  • inspection records

Fast containment capability reduces recall risk.


7.Check Shielding and EMC Expertise

Modern EV systems require strong EMC performance.

Suppliers should understand:

  • 360° shield termination
  • transfer impedance
  • grounding strategy
  • shielding continuity
  • EMC validation requirements

This is particularly important for OBC and inverter applications.


8.Evaluate Tooling and Prototype Capability

A capable supplier should support:

  • rapid prototypes
  • low-volume pilot builds
  • validation samples
  • production tooling development
  • PPAP support

Prototype responsiveness often impacts vehicle launch schedules.


9.Review Supply Chain Stability

OEM buyers should assess:

  • material sourcing strategy
  • dual-source capability
  • inventory management
  • logistics reliability
  • capacity planning

Connector shortages can stop entire production lines.


10.Confirm Customization Capability

Many EV projects require customized solutions such as:

  • integrated HVIL
  • custom keying
  • special shielding
  • unique cable exits
  • compact packaging

Suppliers should demonstrate flexibility without compromising quality control.


11.Audit Failure Analysis Capability

When failures occur, suppliers should provide:

  • root cause analysis
  • microsection capability
  • contact resistance analysis
  • cross-functional corrective actions
  • 8D reporting

Problem-solving capability is a major supplier qualification factor.


12.Evaluate Long-Term Partnership Potential

The best suppliers act as engineering partners rather than transactional vendors.

OEM buyers should consider:

  • communication efficiency
  • technical transparency
  • responsiveness
  • launch support
  • continuous improvement culture

Long-term cooperation often reduces total project risk.


Common Supplier Approval Mistakes

Selecting Only on Unit Price

Low initial pricing may create larger long-term quality costs.

Ignoring Validation Capability

Insufficient testing support delays development.

Overlooking Traceability

Weak traceability increases recall exposure.

Underestimating EMC Expertise

Shielding problems are difficult to correct late in development.

Approving Suppliers Without Process Audits

Factory discipline matters more than presentations.


Questions OEM Buyers Should Ask

Before approval, OEM buyers should ask:

  • What high-voltage projects have you supported?
  • What validation tests can you perform internally?
  • How do you control crimp quality?
  • What traceability systems are in place?
  • How is EMC performance verified?
  • Can you support PPAP requirements?
  • What is your corrective action process?

The answers often reveal the supplier’s real maturity level.


How FPIC Supports OEM Programs

FPIC provides high-voltage connectors and cable assemblies for EV, ESS, and industrial applications.

Our support includes:

  • application engineering
  • custom connector development
  • HVIL integration
  • EMC and shielding support
  • validation testing
  • PPAP documentation
  • traceability systems

We work closely with OEMs and Tier suppliers from prototype through mass production.


Final Thoughts

Approving a high-voltage connector supplier requires more than reviewing technical specifications.

OEM buyers should evaluate:

  • engineering capability
  • manufacturing discipline
  • validation expertise
  • traceability
  • EMC understanding
  • long-term support capability

A reliable supplier helps reduce technical risk, launch delays, and field failures across the product lifecycle.


FAQ

Why is supplier evaluation critical for HV connectors?

Because connector failures can directly affect safety and vehicle reliability.

Should OEMs audit connector factories?

Yes. Process control and traceability should be verified onsite whenever possible.

Why is EMC expertise important?

Poor shielding design can cause communication and system stability problems.

Is prototype capability important?

Yes. Fast prototype support accelerates development and validation.

What certifications should suppliers have?

IATF 16949 and ISO 9001 are commonly expected in automotive programs.


Looking for a Reliable High-Voltage Connector Partner?

FPIC supports OEM and Tier projects with custom high-voltage connector and cable assembly solutions backed by engineering support, validation capability, and controlled manufacturing.

Contact us to discuss your EV or ESS connector program requirements.


Resources

  1. IATF 16949 Automotive Quality Management Standard
    Global automotive quality management requirements.
  2. USCAR-2 Automotive Connector Performance Specification
    Environmental and electrical validation requirements.
  3. LV214 Automotive Connector Validation Standard
    Connector qualification requirements used by major OEMs.
  4. ISO 6469 – EV Safety Requirements
    Safety specifications for electrically propelled vehicles.
  5. TE Connectivity – High Voltage Connectivity Solutions
    Engineering guidance for EV high-voltage interconnect systems.
EV High-Voltage Connector Selection Overview

High-voltage connectors are critical interfaces in electric vehicles (EVs), battery energy storage systems (ESS), and industrial electrification platforms.

They connect major subsystems such as:

  • battery packs
  • onboard chargers (OBC)
  • DC/DC converters
  • inverters
  • power distribution units (PDU)

Although these connectors may appear similar, each application has distinct electrical, mechanical, thermal, and EMC requirements.

This article explains how engineers can select the right high-voltage connector for battery pack, OBC, and DC/DC interfaces.

EV High-Voltage Connector Selection Overview


Step 1: Define Electrical Requirements

The first step is to establish the electrical operating conditions.

Key parameters include:

  • nominal and maximum voltage
  • continuous current
  • peak current
  • allowable temperature rise
  • insulation resistance requirements
  • dielectric withstand requirements

For example:

  • Battery pack connectors may carry several hundred amps.
  • OBC connectors typically carry lower current but may require excellent shielding.
  • DC/DC connectors often combine high current and compact packaging.

Step 2: Evaluate Safety Requirements

High-voltage connectors must meet electrical safety expectations such as:

  • creepage and clearance distances
  • touch-safe design
  • HVIL integration
  • CPA locking features
  • ingress protection

Safety requirements depend on standards, OEM specifications, and application risk assessments.


Step 3: Consider Mechanical Packaging

Packaging constraints strongly influence connector selection.

Important factors include:

  • available installation space
  • cable bend radius
  • mating access
  • keying and polarization
  • mounting method

Compact designs often require trade-offs between size and performance.


Step 4: Assess Environmental Conditions

Connectors must survive the real operating environment.

Consider:

  • temperature range
  • vibration
  • humidity
  • salt exposure
  • dust and water ingress
  • chemical exposure

Battery pack connectors usually require high sealing performance.


Step 5: Review EMC and Shielding Needs

Applications near switching power electronics may require:

  • shielded cable interfaces
  • 360° shield termination
  • conductive backshells
  • low-impedance grounding

OBC and DC/DC interfaces are especially sensitive to EMC requirements.


Step 6: Confirm Current Carrying Capability

Current rating should be validated using:

  • conductor size
  • terminal design
  • contact resistance
  • thermal rise testing
  • cooling conditions

Do not rely solely on catalog current ratings.


Step 7: Evaluate Contact Technology

Important considerations include:

  • contact material
  • plating system
  • contact normal force
  • resistance stability

Reliable low-resistance performance is essential for high-current applications.


Step 8: Determine HVIL Requirements

Many EV systems require integrated HVIL circuits.

HVIL is commonly used in:

  • battery pack connectors
  • service disconnects
  • OBC interfaces

Verify interlock sequencing and connector compatibility.


Step 9: Consider Serviceability

Field maintenance may require:

  • easy disconnect
  • visual mating confirmation
  • ergonomic locking mechanisms
  • replacement without removing adjacent components

Serviceability is particularly important for battery packs.


Step 10: Validate Supplier Capability

Evaluate whether the supplier can provide:

  • application engineering support
  • prototype samples
  • custom cable assemblies
  • validation reports
  • PPAP documentation
  • production traceability

Supplier capability is as important as connector specifications.


Typical Priorities by Application

Battery Pack Connectors

Primary concerns:

  • high current capacity
  • HVIL
  • sealing
  • vibration resistance
  • serviceability

OBC Connectors

Primary concerns:

  • EMC shielding
  • compact size
  • thermal performance

DC/DC Connectors

Primary concerns:

  • current density
  • packaging
  • shielding
  • temperature performance

Common Selection Mistakes

Choosing Based Only on Current Rating

Thermal and environmental performance must also be verified.

Ignoring Shield Termination

Can create EMC problems.

Overlooking Service Access

May complicate maintenance.

Underestimating Packaging Constraints

Can lead to late redesign.

Not Defining Validation Requirements Early

Delays supplier qualification.


Validation Tests to Request

Typical validation activities include:

  • temperature rise
  • contact resistance
  • vibration
  • thermal cycling
  • sealing tests
  • HiPot and insulation resistance
  • HVIL functional testing
  • EMC testing

How FPIC Supports High-Voltage Connector Selection

FPIC provides custom high-voltage connectors and cable assemblies for EV, ESS, and industrial systems.

Our engineering support includes:

  • application analysis
  • connector selection
  • HVIL integration
  • shielding design
  • prototype development
  • validation testing

We help customers balance safety, EMC performance, packaging, and cost.


Final Thoughts

Selecting the right high-voltage connector requires a system-level view.

Engineers should consider:

  • electrical requirements
  • insulation design
  • shielding
  • environmental exposure
  • serviceability
  • supplier capability

A well-chosen connector improves reliability, safety, and manufacturability across the entire product lifecycle.


FAQ

What is the most important factor when selecting a high-voltage connector?

There is no single factor. Voltage, current, safety, environment, and packaging must all be considered.

Do all EV high-voltage connectors require HVIL?

Not all, but HVIL is widely used for safety-critical interfaces.

Why is shielding important for OBC connectors?

OBC systems generate switching noise that can affect EMC performance.

Can catalog current ratings be used directly?

They should be verified under actual operating conditions.

What validation tests are typically required?

Temperature rise, vibration, sealing, HiPot, and HVIL functional testing.


Selecting High-Voltage Connectors for Your EV or ESS Project?

FPIC provides engineering support and custom high-voltage connector and cable assembly solutions for battery packs, OBCs, and DC/DC converters.

Contact us to discuss your application requirements.


Resources

  1. ISO 6469 – Safety Specifications for Electrically Propelled Vehicles
    Core safety requirements for EV high-voltage systems.
  2. LV215 / LV214 Automotive High-Voltage Connector Standards
    Requirements for high-voltage connectors and cable assemblies.
  3. USCAR-2 – Automotive Connector Performance Specification
    Environmental and electrical validation methods.
  4. TE Connectivity – EV High Voltage Connector Selection Guide
    Practical guidance for subsystem connector selection.
  5. Molex – EV Power Connectivity Solutions
    Connector technologies for battery and power electronics.
Creepage vs Clearance Overview

In high-voltage connectors design, electrical safety depends on much more than conductor size and insulation thickness.

Two of the most fundamental design parameters are creepage distance and clearance distance.

These dimensions determine how effectively a connector can withstand operating voltage, transients, humidity, contamination, and aging without flashover or tracking.

Whether you are designing connectors for electric vehicles (EVs), battery energy storage systems (ESS), charging equipment, or industrial power electronics, understanding creepage and clearance is essential.

This article explains the basic concepts, design rules, and validation considerations engineers should know.


What Is Clearance?

Clearance is the shortest distance through air between two conductive parts at different electrical potentials.

Examples include:

  • adjacent terminals
  • terminal to shield
  • terminal to connector shell
  • live parts to chassis ground

If clearance is insufficient, arcing may occur during voltage transients or at high altitude.


What Is Creepage?

Creepage is the shortest path along the surface of an insulating material between two conductive parts.

This path follows the connector housing rather than passing directly through air.

Insufficient creepage can lead to:

  • surface tracking
  • carbonization
  • insulation degradation
  • eventual electrical failure
  • Creepage vs Clearance Overview

Why Both Distances Matter

Clearance addresses air breakdown risk.

Creepage addresses surface leakage and contamination risk.

Both must meet applicable standards and application-specific requirements.


Factors Affecting Required Distances

Required creepage and clearance depend on several variables.

Operating Voltage

Higher voltage requires larger separation distances.

Transient Overvoltage

Switching events and fault conditions may create voltages significantly above nominal levels.

Pollution Degree

Defines the expected environmental contamination level.

Typical classifications:

  • Pollution Degree 1: controlled indoor environment
  • Pollution Degree 2: light non-conductive contamination
  • Pollution Degree 3: conductive contamination or condensation

Material Group (CTI)

Comparative Tracking Index (CTI) measures resistance to surface tracking.

Higher CTI materials can permit shorter creepage distances.

Altitude

Air insulation strength decreases as altitude increases, often requiring increased clearance.

Safety Standard Requirements

Applicable standards may define minimum distances and correction factors.


How Connector Designers Increase Creepage Distance

Design techniques include:

  • insulating ribs
  • barriers
  • recessed terminals
  • tortuous surface paths
  • optimized terminal orientation

These features increase surface distance without significantly enlarging connector size.


Clearance Optimization Techniques

Methods to improve clearance include:

  • wider terminal spacing
  • insulation walls
  • shield isolation
  • careful tolerance control

3D CAD analysis is often used to verify minimum distances.


Common Design Mistakes

Using Nominal Dimensions Only

Manufacturing tolerances may reduce actual distances.

Ignoring Contamination

Real-world environments can be more severe than expected.

Overlooking Altitude

Reduced air density lowers dielectric strength.

Neglecting Aging

Materials may degrade over time.

Assuming Creepage and Clearance Are Interchangeable

They address different failure mechanisms.


Example Applications

Typical high-voltage connector applications include:

  • EV battery pack connectors
  • inverter interfaces
  • onboard chargers
  • DC fast charging connectors
  • ESS battery interconnects

Each application may have unique safety requirements.


Validation Methods

Design assumptions should be verified by:

  • dielectric withstand (HiPot) testing
  • insulation resistance measurement
  • humidity conditioning
  • contamination testing
  • thermal cycling
  • altitude testing where applicable

Validation confirms that theoretical spacing performs under real conditions.


Relevant Standards

Common standards include:

  • IEC 60664-1
  • IEC 62109
  • IEC 61800
  • UL 840
  • ISO 6469
  • OEM high-voltage specifications

The applicable standard depends on the end product and market.


Practical Design Trade-Offs

Increasing creepage and clearance generally improves safety, but may also:

  • enlarge connector size
  • increase material cost
  • affect mating force
  • complicate packaging

The goal is to meet requirements efficiently while preserving manufacturability.


How FPIC Supports High-Voltage Connector Development

FPIC designs and manufactures high-voltage connectors and cable assemblies for EV, ESS, and industrial systems.

Our engineering support includes:

  • creepage and clearance review
  • material selection guidance
  • HVIL integration
  • sealing and shielding design
  • HiPot and insulation testing

We help customers balance electrical safety, packaging, and cost.


Final Thoughts

Creepage and clearance are foundational elements of high-voltage connector design.

A robust design must consider:

  • voltage level
  • environmental conditions
  • insulation material properties
  • tolerances
  • applicable standards

Understanding these principles early helps prevent costly redesigns and improves product safety.


FAQ

What is the difference between creepage and clearance?

Clearance is distance through air; creepage is distance along an insulating surface.

Why is CTI important?

Higher CTI materials resist tracking better and may allow shorter creepage distances.

Does altitude affect connector design?

Yes. Higher altitude reduces dielectric strength of air, increasing required clearance.

Can barriers increase creepage distance?

Yes. Ribs and barriers create longer surface paths.

How are these distances verified?

Through CAD analysis and electrical validation testing such as HiPot.


Designing a High-Voltage Connector?

FPIC provides engineering support and manufacturing for custom high-voltage connectors and cable assemblies with optimized insulation design and validated performance.

Contact us to discuss your application requirements.


Resources

  1. IEC 60664-1 – Insulation Coordination for Low-Voltage Systems
    Core standard for creepage and clearance requirements.
  2. UL 840 – Insulation Coordination Including Clearances and Creepage Distances
    North American guidance for electrical spacing.
  3. ISO 6469 – EV Safety Requirements
    Safety specifications for electrically propelled vehicles.
  4. TE Connectivity – High Voltage Connector Design Guide
    Practical connector design considerations.
  5. Molex – High-Voltage Connectivity Solutions
    Application guidance for EV and energy systems.
EV High-Voltage Shielding Overview

Electric vehicles contain some of the most electrically demanding environments in modern engineering.

Inverters, DC/DC converters, onboard chargers, and fast-switching traction systems generate significant electromagnetic noise. Without effective shielding, this noise can interfere with communication networks, sensors, and vehicle electronics.

While shielded cable is an essential first step, overall EMC performance depends heavily on how the shield is terminated through the connector system.

This article explains how high-voltage connector shielding works, common design pitfalls, and the validation methods used to verify EMC performance.


Why Shielding Matters in EV High-Voltage Systems

Typical EV high-voltage cables connect:

  • battery pack
  • inverter
  • onboard charger
  • DC/DC converter
  • electric compressor
  • PDU

These circuits carry high current with rapid switching edges, producing both conducted and radiated emissions.

Potential consequences of poor shielding include:

  • CAN and Ethernet communication errors
  • sensor disturbances
  • failed EMC compliance tests
  • unintended controller resets

Connector shielding helps maintain continuous low-impedance paths for high-frequency currents.

EV High-Voltage Shielding Overview


Basic Shielding Principle

Cable shields work by directing high-frequency noise currents to chassis ground.

For shielding to be effective, the current path must remain continuous across:

  • cable shield
  • backshell
  • connector shell
  • equipment enclosure

Any discontinuity increases impedance and reduces attenuation.


360° Shield Termination

The most effective approach is a full circumferential, or 360°, shield termination.

This method:

  • maximizes shield coverage
  • minimizes transfer impedance
  • avoids long pigtails
  • improves high-frequency performance

Pigtail terminations are generally less effective at high frequencies.


Connector Design Elements for Shielding

High-voltage shielded connectors may include:

  • metal shells
  • conductive backshells
  • spring fingers
  • shield clamps
  • conductive gaskets

These components maintain electrical continuity between cable shield and vehicle chassis.


Grounding Strategy

Shield termination usually connects to chassis ground.

Key considerations include:

  • low contact resistance
  • corrosion protection
  • stable mechanical retention
  • compatibility with system grounding architecture

The objective is low impedance across the relevant frequency range.


Transfer Impedance and Shield Effectiveness

Shield performance is often characterized by transfer impedance.

Lower transfer impedance generally indicates better shielding effectiveness.

Connector design, material choice, and termination quality all influence this parameter.


Common Design Mistakes

Long Shield Pigtails

Increase inductance and degrade high-frequency shielding.

Incomplete Circumferential Contact

Creates local impedance discontinuities.

Poor Corrosion Resistance

Raises contact resistance over time.

Weak Mechanical Retention

Allows micro-motion and fretting.

Discontinuous Shield Path

Reduces attenuation effectiveness.


Mechanical and Environmental Requirements

Shield terminations must remain effective under:

  • vibration
  • thermal cycling
  • humidity
  • salt spray
  • mechanical shock

EMC performance must be maintained throughout the product life.


Validation Methods

Typical validation tests include:

  • shield continuity resistance
  • transfer impedance measurement
  • radiated emissions
  • conducted emissions
  • bulk current injection (BCI)
  • vibration and thermal aging followed by EMC retest

Testing before and after environmental exposure is essential.


Relationship Between Shielding and HV Safety

Shield design must coexist with high-voltage requirements such as:

  • creepage and clearance
  • insulation resistance
  • HiPot withstand
  • touch safety

EMC and safety requirements must be balanced within the same connector package.


Typical Applications

Shielded high-voltage connectors are used in:

  • battery-to-inverter cables
  • onboard charger connections
  • DC fast charging interfaces
  • electric compressors
  • ESS power systems

How FPIC Supports Shielded HV Connector Design

FPIC provides custom high-voltage connector and cable assembly solutions featuring:

  • 360° shield termination
  • integrated backshells
  • HVIL support
  • sealing and mechanical locking
  • continuity, IR, HiPot, and EMC-related validation

Our engineering team helps customers optimize both electrical safety and EMC performance.


Final Thoughts

In EV systems, shielding performance depends on the entire connector and cable assembly—not just the cable itself.

A reliable design requires:

  • continuous shield paths
  • low-impedance termination
  • corrosion-resistant grounding
  • mechanical robustness
  • environmental validation

Effective connector shielding is a key contributor to EMC compliance and system reliability.


FAQ

Why is 360° shield termination preferred?

It minimizes inductance and provides superior high-frequency performance.

What is transfer impedance?

A measure of how effectively a shield limits noise transfer.

Can a cable shield work with a poor connector termination?

No. Connector termination is often the determining factor in overall shielding effectiveness.

Does corrosion affect EMC?

Yes. Increased contact resistance raises shield impedance.

Should EMC performance be tested after vibration?

Yes. Mechanical stress can degrade shield continuity.


Need High-Voltage Connectors with Robust Shielding Performance?

FPIC designs custom shielded high-voltage connectors and cable assemblies for EV and energy storage systems.

Contact us to discuss your EMC and high-voltage interconnect requirements.


Resources

  1. CISPR 25 – Vehicle EMC Requirements
    Standard for radiated and conducted emissions in vehicles.
  2. ISO 11452 – Road Vehicle EMC Immunity Testing
    EMC immunity test methods including BCI.
  3. LV214 – Automotive Connector Validation Standard
    Environmental and electrical requirements for automotive connectors.
  4. TE Connectivity – Shield Termination Design Guide
    Practical guidance on 360° shield grounding.
  5. Molex – High-Voltage Shielded Connector Solutions
    Connector design approaches for EV EMC performance.
HVIL Connector Working Principle

In electric vehicles (EVs), battery energy storage systems (ESS), and other high-voltage applications, electrical safety extends far beyond insulation and creepage distance.

One of the most important safety mechanisms is the High Voltage Interlock Loop (HVIL).

HVIL circuits continuously monitor whether high-voltage connectors, service disconnects, and enclosures are properly engaged. If the loop is interrupted, the control system immediately disables the high-voltage contactors.

Although the HVIL circuit carries only a low-voltage signal, its reliability is essential to the safe operation of the entire system.

This article explains how HVIL connectors work, common failure modes, and the validation tests used to ensure robust performance.

HVIL Connector Working Principle


What Is HVIL?

HVIL stands for High Voltage Interlock Loop.

It is a low-current monitoring circuit that passes through:

  • battery pack connectors
  • inverter connectors
  • onboard chargers
  • DC fast charging interfaces
  • service disconnects
  • high-voltage enclosures

When all connectors are fully mated and covers are closed, the loop remains intact.

If any component is opened or partially disconnected, the loop opens and the system shuts down high voltage.


Why HVIL Is Important

HVIL helps protect:

  • service technicians
  • assembly operators
  • end users
  • vehicle electronics

Typical safety functions include:

  • disabling contactors before connector separation
  • detecting incomplete mating
  • monitoring service access covers
  • preventing energized exposure

In most EV architectures, HVIL is part of the functional safety strategy.


Basic HVIL Operating Principle

The battery management system (BMS) or vehicle control unit injects a low-voltage signal through the interlock loop.

The controller monitors:

  • loop continuity
  • resistance value
  • voltage level

If the signal falls outside expected limits, a fault is triggered.

Some systems use simple open/closed detection, while others use resistor coding to identify specific components.


HVIL Connector Design Features

A dedicated HVIL connector typically includes:

  • two low-voltage interlock contacts
  • staggered contact lengths
  • early-break / late-make sequencing
  • CPA locking features
  • sealed housing
  • mechanical polarization

The HVIL contacts are usually designed to disconnect before the high-voltage power contacts separate.


Early-Break / Late-Make Concept

HVIL contacts are intentionally longer or shorter than power contacts.

During Unmating

The HVIL circuit opens first, allowing contactors to open before high-voltage contacts separate.

During Mating

Power contacts are fully engaged before the HVIL loop closes.

This sequencing is critical to system safety.


Common HVIL Failure Modes

1.Contact Fretting

Micro-motion can increase resistance and cause intermittent loop faults.

2.Incomplete Mating

If the connector is not fully seated, HVIL continuity may be unstable.

3.Terminal Back-Out

Improper terminal retention can interrupt the circuit.

4.Corrosion or Water Ingress

Moisture may increase resistance or cause open circuits.

5.Broken HVIL Wires

Small-gauge wires are vulnerable to fatigue and handling damage.

6.Contaminated Contacts

Debris or oxidation can degrade signal integrity.


Design Considerations for Reliable HVIL Performance

Key design priorities include:

  • stable low-current contact resistance
  • robust terminal retention
  • vibration-resistant locking
  • environmental sealing
  • clear mating confirmation
  • protected wire routing

Because HVIL circuits carry very low current, they are especially sensitive to contamination and fretting.


Validation Test Points

Typical validation activities include:

  • contact resistance measurement
  • mating and unmating force
  • terminal retention force
  • vibration testing
  • thermal cycling
  • humidity exposure
  • salt spray
  • sealing tests
  • mechanical shock

Functional monitoring should verify that the HVIL circuit opens and closes in the correct sequence.


Critical Functional Checks

During validation, engineers should confirm:

  • HVIL opens before power contacts disengage
  • HVIL closes only after full mating
  • resistance remains within specification
  • no intermittent opens occur during vibration
  • CPA and locking systems function correctly

Standards and Specifications

Relevant standards may include:

  • LV214
  • USCAR-2
  • OEM high-voltage connector specifications
  • ISO 6469
  • ISO 26262

Requirements vary by customer and application.


Typical Applications

HVIL connectors are widely used in:

  • EV battery packs
  • inverters
  • PDU (Power Distribution Units)
  • onboard chargers
  • DC fast charge systems
  • ESS battery cabinets

How FPIC Supports HVIL Connector Projects

FPIC provides custom high-voltage connector and cable assembly solutions with:

  • integrated HVIL circuits
  • sealed connector designs
  • CPA and TPA features
  • continuity, IR, and HiPot testing
  • application engineering support

We help customers develop reliable high-voltage interconnect systems for EV and energy applications.


Final Thoughts

HVIL connectors carry only a low-voltage signal, but they play a critical role in high-voltage safety.

  • A robust design requires:
  • correct contact sequencing
  • stable low-current performance
  • secure mechanical locking
  • environmental protection
  • thorough validation

In EV systems, the reliability of the HVIL circuit is essential to protecting both people and equipment.


FAQ

What does HVIL stand for?

High Voltage Interlock Loop.

What happens when the HVIL circuit opens?

The system commands the high-voltage contactors to open and disables high voltage.

Why are HVIL contacts sequenced differently from power contacts?

To ensure the safety circuit opens before high-voltage contacts separate.

Can corrosion cause HVIL faults?

Yes. Low-current circuits are highly sensitive to contamination and corrosion.

Is HVIL required in EV systems?

It is widely used as a core safety mechanism in high-voltage architectures.


Developing High-Voltage Connectors with HVIL?

FPIC provides custom high-voltage connectors and cable assemblies with integrated HVIL solutions for EV, ESS, and industrial applications.

Contact us to discuss your design and validation requirements.


Resources

  1. ISO 6469 – Electrically Propelled Road Vehicles Safety Specifications
    Safety requirements for EV high-voltage systems.
  2. LV214 – Environmental and Electrical Requirements for Automotive Connectors
    Automotive connector validation standard widely used by OEMs.
  3. USCAR-2 – Performance Specification for Automotive Connectors
    Defines connector reliability and environmental tests.
  4. ISO 26262 – Functional Safety for Road Vehicles
    Functional safety framework for automotive systems.
  5. TE Connectivity – HVIL Design Concepts
    Technical guidance on high-voltage interlock connector design.
