Specifications

Body Material C2680, t = 0.30 mm
Clip Material SS301, t = 0.15 mm
Surface Finish Nickel plating, 2.5–4.0 μm
Current Rating 13A
Contact Millivolt Drop 40 mV @ 13A
LLCR 4 mΩ max with 16AWG / 7.5 mΩ max with 18AWG
Separation Force After Assembly 150N min
Contact Retention Force from Housing 110N min
Salt Spray Test 96 hours
Twist 45° / 1000 mm max

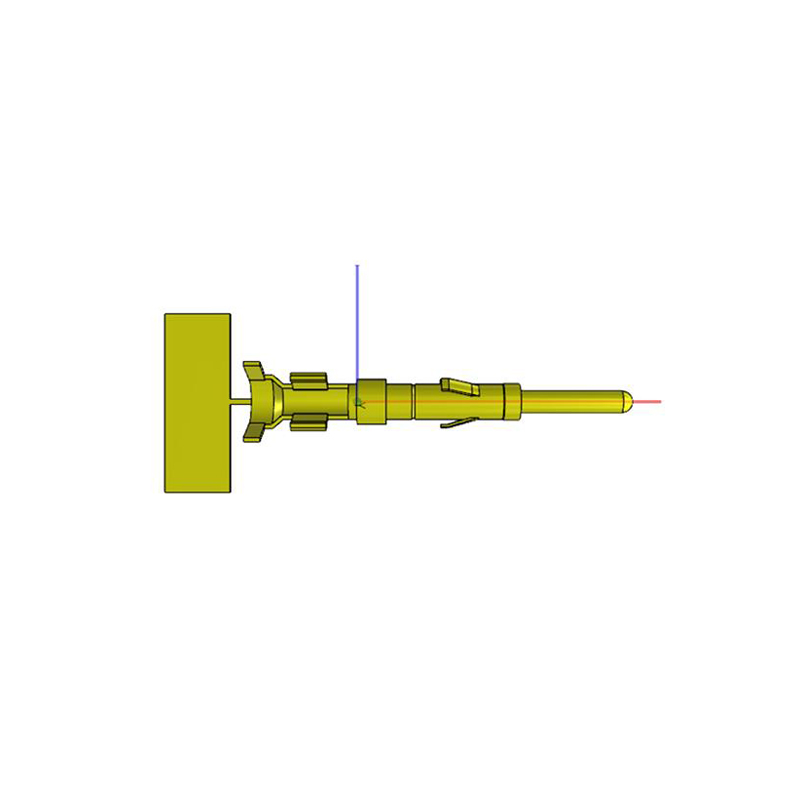

Composite Pin Terminal for Automotive Connectors

Composite Pin Terminal

Features:

  • Composite structure with brass body and stainless steel clip.
  • 13A current rating for stable electrical performance.
  • Low contact resistance for reliable connection.
  • Nickel plating for corrosion resistance.
  • 96-hour salt spray tested.
  • Strong sleeve separation and housing retention force.
  • RoHS and REACH compliant.

Applications:
