Specifications

Application Automotive Connectors
Sleeve Material SUS316L, T = 0.10 mm
Spring Terminal Material S32005, T = 0.15 mm
Female Body Material C5191, T = 0.30 mm
Surface Finish Gold Flash / Nickel (per code option)
Insertion Force 1.0–8.0 N
Withdrawal Force 1.0–4.0 N
Contact Resistance 5 mΩ max
Salt Spray Test 48 hours
Sleeve Retention Force 140N min after assembly

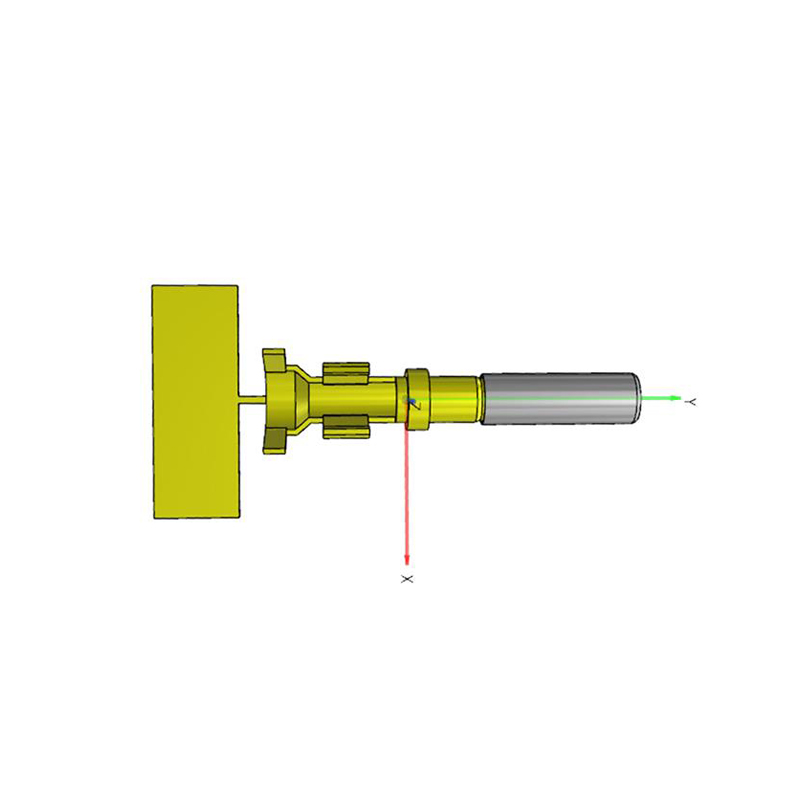

1.6 Socket Contact Body for Automotive Connectors

Reliable female contact body for automotive connector systems requiring stable mating, low contact resistance, and secure terminal retention.

1.6 Socket Contact Body for Automotive Connectors

Features:

  • Designed for stable mating with Ø1.55 pin contact.
  • Low contact resistance up to 5 mΩ max.
  • Strong sleeve retention after assembly.
  • Controlled insertion and withdrawal force for reliable use.
  • Multi-material structure for balanced performance.
  • Surface finish options for different project needs.
  • 48-hour salt spray resistance and RoHS/REACH compliance.

Advantages:

  • Reliable for automotive connector systems.
  • Stable electrical and mechanical performance.
  • Suitable for scalable production.
  • Flexible for different project needs.
