Specifications

Product TypeAutomotive PCB Header & Receptacle
Base MaterialCu-alloy
Tensile Strength560 N/mm²
Rated Current7A
Maximum Voltage500V DC
Maximum Resistance5 mOhm per pin
PlatingElectroplated tin matte
ApplicationWireless Charging Module
Product CertificatesIATF16949

4 Pin Automotive PCB Header & Receptacle for Wireless Charging Module

FPIC’s 4 Pin Automotive PCB Header & Receptacle is designed for wireless charging module applications in automotive electronics. It provides a compact and reliable board-level interconnection solution for power and signal transmission where stable contact, low resistance, and consistent mechanical performance are required.

Built for automotive electronic module integration, this connector combines Cu-alloy terminals, 7A rated current, and 500V DC maximum voltage capability in a compact PCB connection format. It is suitable for applications that require dependable electrical performance, controlled contact resistance, and stable assembly quality.

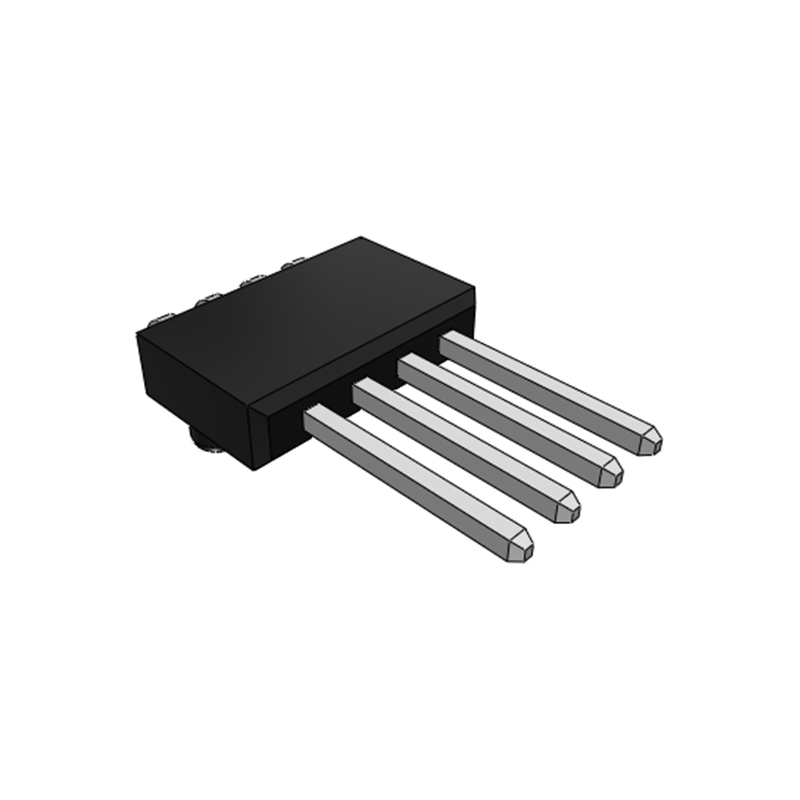

4 Pin Automotive PCB Connector for Wireless Charging

Key Features

Designed for Automotive Wireless Charging Modules

This connector is suitable for wireless charging module PCB connection in automotive electronics, where compact size and stable contact performance are both important.

Reliable Electrical Performance

With a 7A rated current and 500V DC maximum voltage, the connector supports dependable power and signal connection in automotive module applications.

Low Contact Resistance

A maximum resistance of 5 mOhm per pin helps support efficient current transfer and stable connection quality.

High-Strength Cu-Alloy Terminals

The terminal system uses Cu-alloy with 560 N/mm² tensile strength, supporting good conductivity together with reliable mechanical performance.

Tin Matte Plating for Stable Mating

The contact area uses electroplated tin matte, with 1.6–4 μm Sn over 1.6–4 μm Ni in the plug area, helping improve surface performance and connection consistency.

Compact PCB Header & Receptacle Structure

The header and receptacle format makes this product suitable for automotive PCB interconnection where space efficiency and stable module integration are required.

Applications

  • Automotive wireless charging modules
  • Automotive PCB power and signal connection
  • In-vehicle electronic control modules
  • Compact automotive electronic assemblies
  • Board-level interconnection inside automotive devices

Why Choose FPIC

FPIC supports custom automotive connector development for PCB-level and module-level applications. With experience in connector design, tooling, manufacturing, and quality control, we help customers improve product fit, electrical performance, and mass production consistency.

For automotive electronics projects, FPIC can support development based on drawings, technical requirements, and application needs, helping customers move from design review to scalable production more efficiently.

Get a Quote Now

Related Products

Custom Development Support

Looking for a reliable automotive PCB connector for your wireless charging module or other in-vehicle electronics project? Contact FPIC for product details, development support, or quotation.
