Overview of HE Series Heavy-Duty Connectors
The HE Series Heavy-Duty Connectors are FPIC’s standard rectangular connector solution for industrial applications requiring higher pin density, stable current transmission, and reliable mechanical performance. The series is widely used in automation equipment, power distribution systems, and industrial control cabinets.
Compared with HA Series, the HE Series focuses on higher contact density under a 16A current class, making it suitable for applications where multiple power and signal circuits need to be integrated within a compact connector interface.
Modular Structure & Configuration Logic

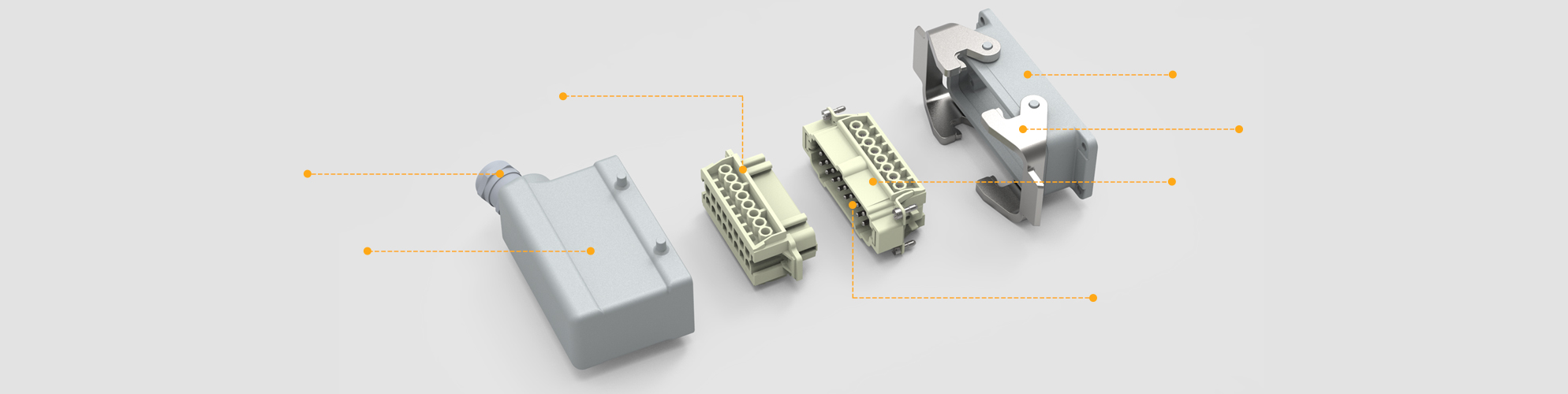

HE Series connectors adopt a modular structure, allowing flexible configuration through the selection of housings, inserts, contacts, and termination methods. This modular design simplifies system wiring, maintenance, and future expansion.

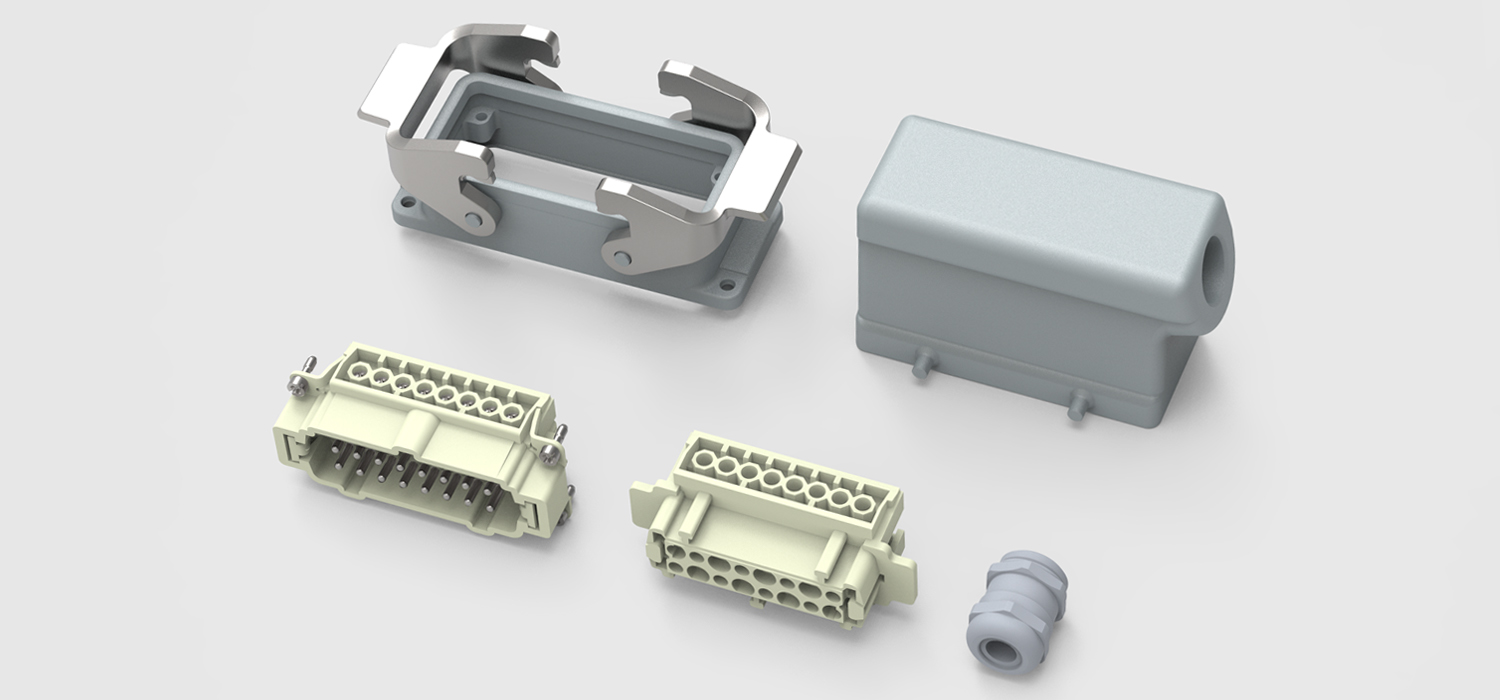

Connector structure includes:
- Housing (hood and base)
- Insert (male and female)
- Contacts
- Termination and locking accessories
HE Series Configuration Options
1.Housing Options
HE Series connectors use robust rectangular metal housings made of die-cast aluminum alloy with corrosion-resistant surface treatment, suitable for harsh industrial environments.
Key options:
- Top entry and side entry housings
- Panel-mount and bulkhead-mount bases
- Secure installation for control cabinets and enclosures
2.Insert Types & Pin Counts
HE Series inserts are designed for 16A rated current and support higher contact density compared with HA Series.
Available pin counts:
- 6, 10, 16, 24, 32 (2×16), 48 (2×24) + PE
These configurations allow efficient integration of multiple circuits within one connector.
3.Contacts, Termination & Locking
Contacts are manufactured from high-quality copper alloy to ensure stable electrical performance and long service life.
Termination methods:
- Screw termination
- Crimp termination
- Cage clamp termination
- Spring termination (including quick-connect options)
Locking system:
Lever-type locking mechanism ensures secure mating, vibration resistance, and protection against accidental disconnection.
Electrical & Mechanical Performance
HE Series Heavy-Duty Connectors are designed and tested in accordance with DIN EN 60664 and DIN EN 61984, ensuring safe and reliable operation in industrial environments with pollution degree 3.
These parameters make HE Series connectors suitable for continuous operation in demanding industrial systems.
Typical Applications
- Industrial automation systems
- Power distribution and control cabinets
- Servo drives and motor control systems
- Packaging and processing machinery
- Production line equipment
Key Technical Parameters (Summary)
| Parameter | HA Series Specification |
|---|---|
| Rated Current | 16A |
| Rated Voltage | 500V |
| Rated Impulse Voltage | 6kV |
| Operating Temperature | –40°C to +125°C |
| Contact Resistance | ≤ 1 mΩ |
| Mating Cycles | ≥ 500 |
| Contact Material | Copper alloy |
| Contact Plating | Silver plated |
| Insulation Resistance | ≥ 10¹⁰ Ω |
| Wire Range | 0.14 – 4.0 mm² |
FPIC provides engineering-level customization for HE Series Heavy-Duty Connectors to support OEM and system integration projects.
Customization capabilities include:
- Custom insert layouts and pin assignments
- Mixed power and signal configurations
- Cable assembly and wire harness integration
- Prototype validation and scalable mass production
Why Choose FPIC for HE Series Heavy-Duty Connectors
FPIC is a professional manufacturer of connectors and cable assemblies with over two decades of experience serving industrial, automotive, and new energy markets. From product design to mass production, FPIC provides reliable HE Series Heavy-Duty Connector solutions backed by engineering expertise, strict quality control, and flexible customization capability.
Key advantages:
- 20+ years of manufacturing experience in connectors and cable assemblies
- Engineering-driven design support, from selection guidance to application validation
- Zero-risk custom development, including prototyping and design optimization
- Highly automated production processes ensuring stable quality and consistency
- Flexible OEM & ODM capability, including custom inserts, housings, and cable assemblies
- Global export experience, serving customers in Europe, the Americas, and other international markets
Quality & compliance note:
FPIC operates under internationally recognized quality management systems and applies strict process control throughout production. Each HA Series connector is manufactured with traceability and consistency to meet industrial application requirements.
