Overview of HEE Series Heavy-Duty Connectors
The HEE Series Heavy-Duty Connectors are FPIC’s high-density rectangular connector solution designed for industrial applications where space is limited and multiple circuits must be integrated within a compact connector interface.
Compared with HE Series, the HEE Series provides significantly higher contact density while maintaining a 16A current rating, making it ideal for advanced automation systems, compact control cabinets, and equipment requiring dense signal and power distribution.
Modular Structure & High-Density Design Concept
HEE Series connectors adopt a modular structure similar to other heavy-duty connector families, while optimizing insert layout to achieve higher contact density without compromising electrical or mechanical reliability.

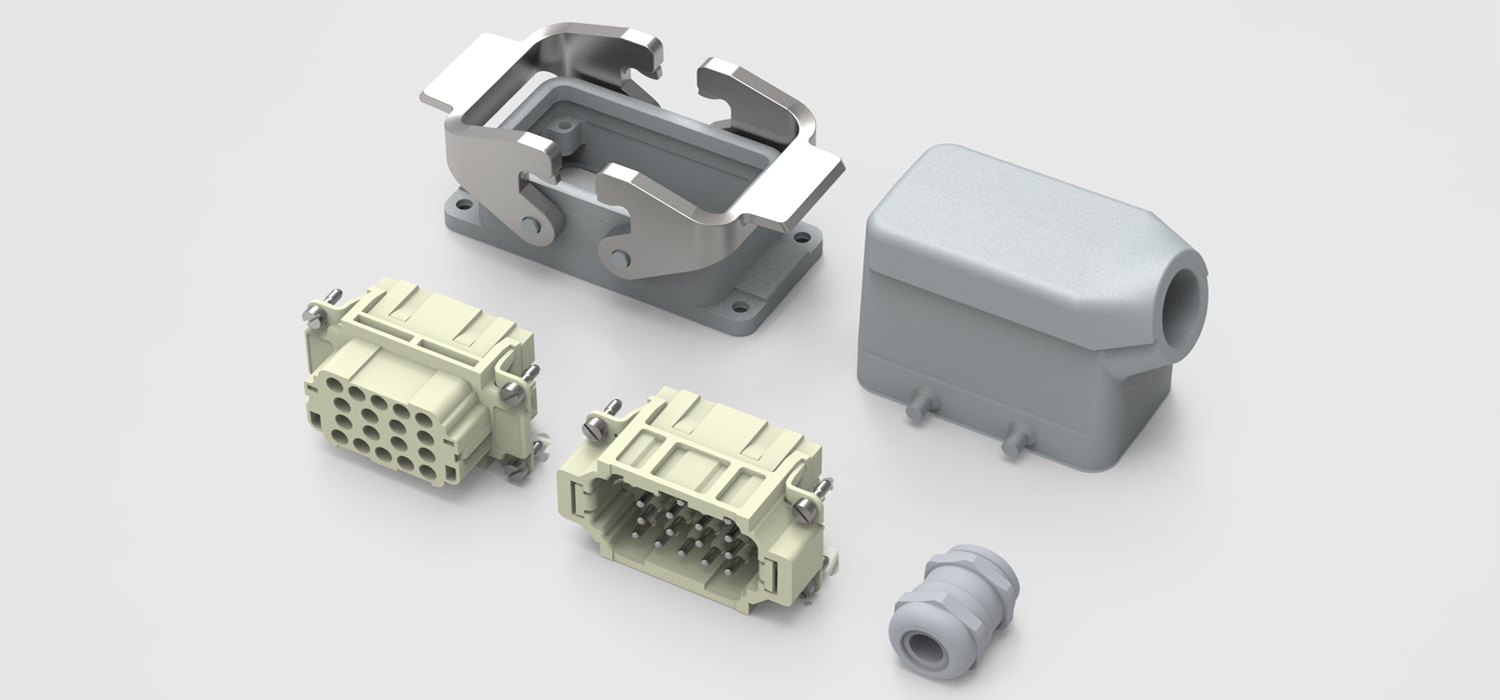

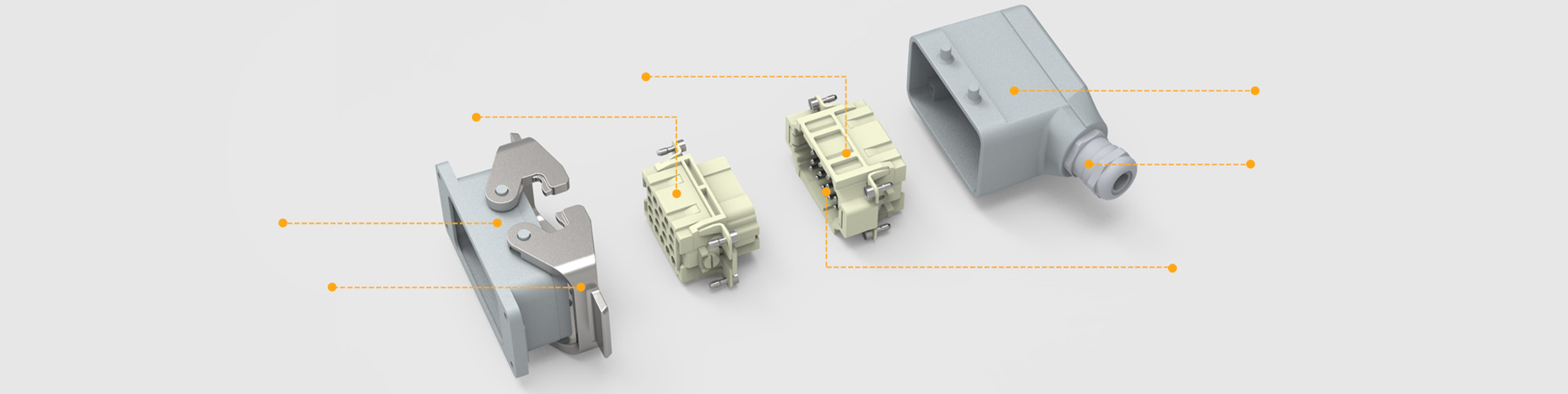

Connector structure includes:
- Housing (hood and base)
- High-density inserts (male and female)
- Contacts
- Termination and locking accessories
HEE Series Configuration Options
1.Housing Options

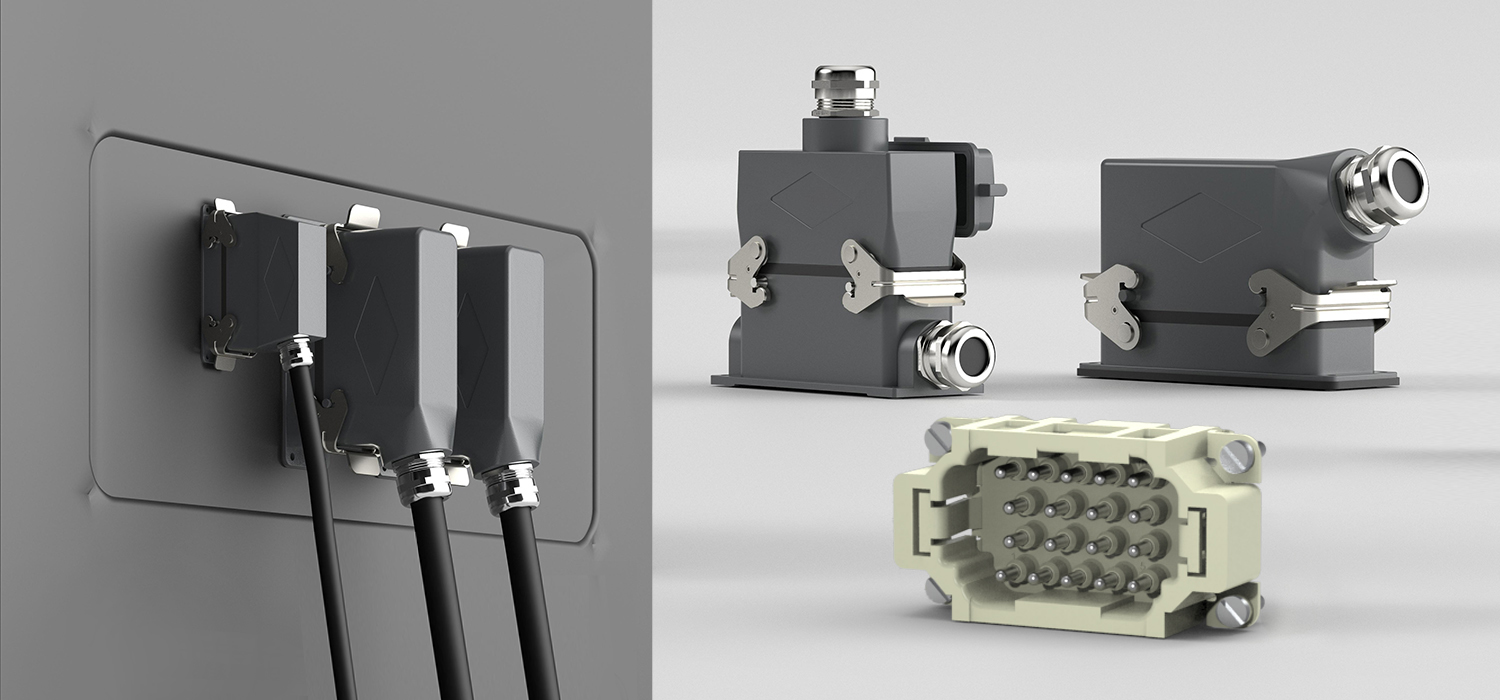

HEE Series connectors use rectangular metal housings made of die-cast aluminum alloy with corrosion-resistant surface treatment, suitable for harsh industrial environments.
Available options:
- Top entry and side entry housings
- Panel-mount and bulkhead-mount bases
- Secure mounting in compact control cabinets and enclosures
2.High-Density Inserts & Pin Counts
HEE Series inserts are designed for high contact density under a 16A current class, enabling more circuits within a limited installation space.
Available pin counts:
- 10, 18, 32, 40, 46, 64 (2×32), 92 (2×46) + PE
These configurations allow efficient integration of complex signal and power wiring in compact industrial systems.
3.Contacts, Termination & Locking
Contacts are manufactured from high-quality copper alloy to ensure stable conductivity and long service life, even in high-density configurations.
Termination methods:
- Crimp termination
- Cage clamp termination
- Spring termination (including quick-connect options)
Locking system:
Lever-type locking mechanism ensures secure mating, vibration resistance, and reliable operation in industrial environments.
Electrical & Mechanical Performance
HEE Series Heavy-Duty Connectors are designed and tested according to DIN EN 60664 and DIN EN 61984, ensuring reliable performance in industrial environments with pollution degree 3.
These characteristics ensure safe and stable operation even in high-density connector layouts.
Typical Applications
- Compact industrial automation systems
- High-density control cabinets
- Robotics and motion control equipment
- Servo drives and I/O modules
- Advanced manufacturing and production lines
Key Technical Parameters (Summary)
| Parameter | HA Series Specification |
|---|---|
| Rated Current | 16A |
| Rated Voltage | 500V |
| Rated Impulse Voltage | 6kV |
| Operating Temperature | –40°C to +125°C |
| Contact Resistance | ≤ 1 mΩ |
| Mating Cycles | ≥ 500 |
| Contact Material | Copper alloy |
| Contact Plating | Silver plated |
| Insulation Resistance | ≥ 10¹⁰ Ω |
| Wire Range | 0.14 – 4.0 mm² |
FPIC provides engineering-level customization for HEE Series connectors, supporting OEM and system integrators with compact, high-density connector solutions.
Customization capabilities include:
- Custom insert layouts and pin assignments
- High-density power and signal combinations
- Cable assembly and wire harness integration
- Prototype validation and scalable mass production
Why Choose FPIC for HEE Series Heavy-Duty Connectors
FPIC is a professional manufacturer of connectors and cable assemblies with over 20 years of industry experience, providing reliable high-density connector solutions for global customers.
Key advantages:
- 20+ years of manufacturing experience in connectors and cable assemblies
- Engineering-driven design support, from selection guidance to application validation
- Zero-risk custom development, including prototyping and design optimization
- Highly automated production processes ensuring stable quality and consistency
- Flexible OEM & ODM capability, including custom inserts, housings, and cable assemblies
- Global export experience, serving customers in Europe, the Americas, and other international markets
Quality & compliance note:
FPIC operates under internationally recognized quality management systems and applies strict process control throughout production. Each HEE Series connector is manufactured with traceability and consistency to meet industrial application requirements.
Q: What is the rated current of HEE Series connectors?
A: HEE Series connectors are rated for 16A, even in high-density configurations.
Q: What is the difference between HE Series and HEE Series?
A: HE Series focuses on standard density under 16A, while HEE Series provides significantly higher contact density for compact installations.
Q: What standards do HEE Series connectors comply with?
A: HEE Series connectors comply with DIN EN 60664 and DIN EN 61984.
Q: Are HEE Series connectors suitable for high-temperature environments?
A: Yes. They operate from –40°C to +125°C, and selection should consider current derating at elevated temperatures.
Q: Can FPIC customize HEE Series connectors?
A: Yes. FPIC supports custom high-density insert layouts and cable assemblies for HEE Series.
